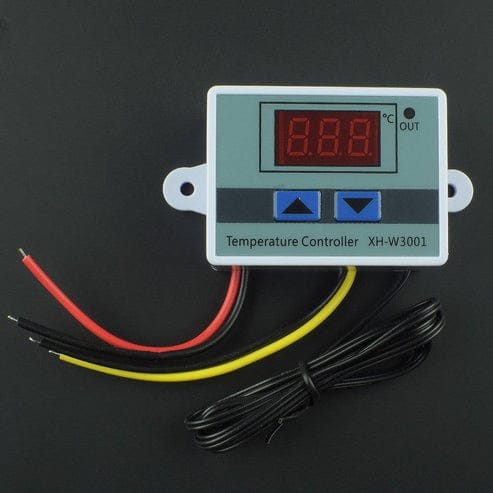

This is an XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch. A temperature measurement and Controller tool with high accuracy and precision at a very low cost.
It offers high-temperature control precision of 0.1℃. The temperature control range from -50℃ to 110℃.
It features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. Also, all the delicate and sensitive components are kept safe in ABS flame retardant housing which is avirulent and environmentally protective.
Specification:
Model No.
XH-W3001
Operating Voltage
6 ~ 12VDC
Rated Power
120W
Rated Current
10 mA Max.
Measurement Input
NTC10K
Temperature Measuring Range
-50 ~ 110°C
Temperature Control Range
-50 ~ 110°C
Control Accuracy
Upto 0.1℃
Measuring Accuracy
± 0.2 ℃
Dimensions LxWxH
60 x 45 x 31mm
Features:
Easy to install
Output type: Direct Output
Output capacity: MAX 10Aemperature measurement, display; refrigeration, heating control
Temperature setting upper and lower limits
Simple operation, suitable for seafood machines.
Upper key: The start temperature is displayed in one press, and a long press to set the start temperature.
Lower key: The stop temperature is displayed in one press, and a long press to set the stop temperature.
Button Function:
Press UP to show the start temperature button.
On Long press of the UP button, the display starts Flashing, then press the UP or DOWN button Set the beginning of the temperature value
Press Down the display button to stop temperature.
On Long press of the Down button, the display starts Flashing, then press the UP or Down button Set to stop the temperature value.
Package Included:
1 x XH-W3001 DC 12V 120W Digital Microcomputer Thermostat Switch
