Waveshare 4 Port USB HUB HAT for Raspberry Pi, provides more USB capability to your Pi, what’s more, it features USB to UART converter for easy serial communication.
It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero 2W / Zero W / Zero WH.
Specifications:
Operating voltage: 5V
Dimension: 65mm × 30mm
Mounting hole size: 3.0m
USB HUB HAT Features:
4 USB Ports, compatible with USB2.0/1.1

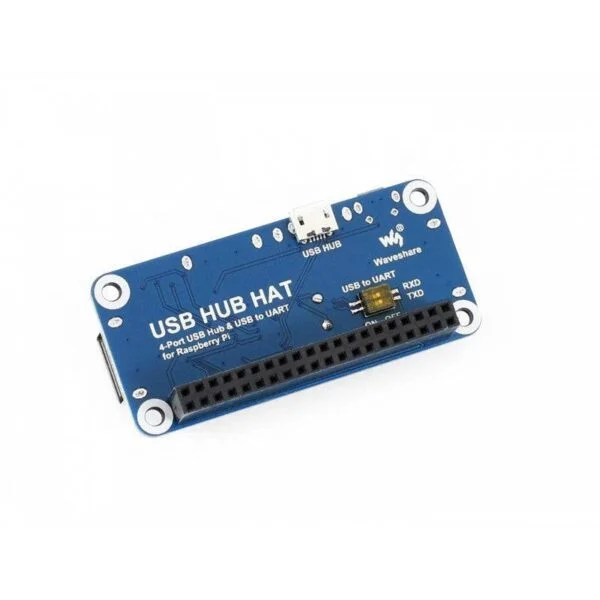

Onboard USB to UART, with enable / disable switch, convenient for Raspberry Pi serial debugging and avoiding conflict
Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port
What ‘s on the USB HUB HAT
Raspberry Pi GPIO interface: for connecting Raspberry Pi
USB to UART: for controlling the Raspberry Pi via a serial terminal
USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port

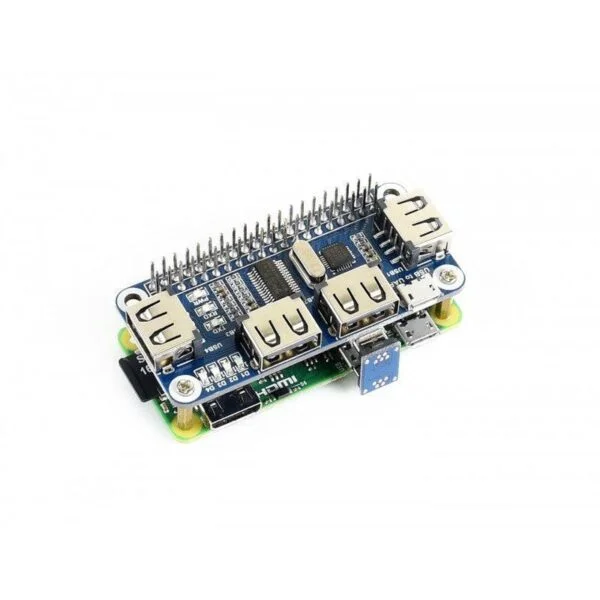

Raspberry Pi Zero / Zero 2W / Zero W / Zero WH: connected via Micro USB connector

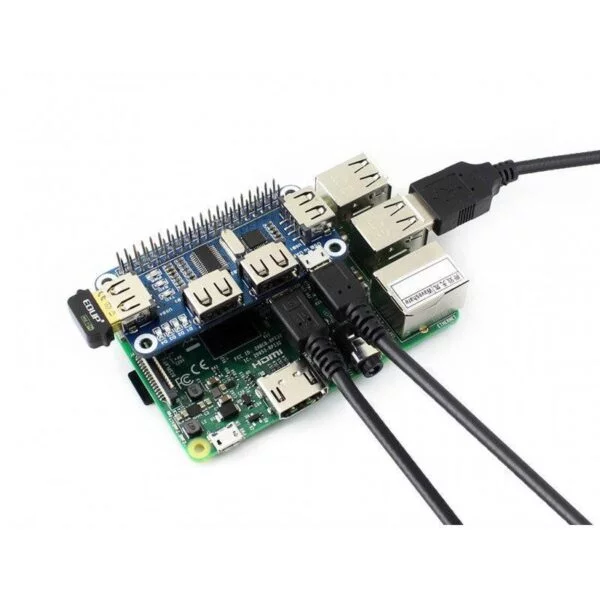

Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable

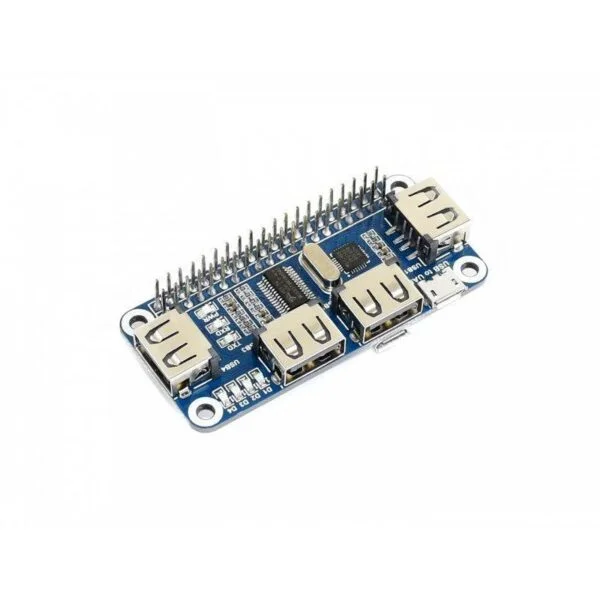

USB extended ports: USB1~USB4
USB port indicators: a dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
