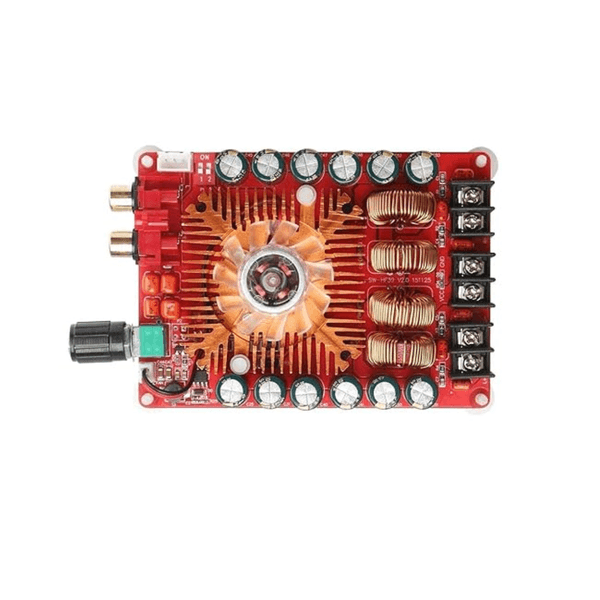

TDA7498E Digital Audio Amplifier Board Sound quality is very good and it can drive 4/6/8 ohm speakers. It has sufficient and high power output 2 x 160W. It supports BTL mode and when heat sink temperature rises to a certain extent, the cooling fan will work.
Specification:
Amplifier Chip: TDA7498E
Material : PCB Board
Output Power: 2 x 160W
Input Voltage: 36VDC
Rated Voltage: 36V
Number of Channels: 2
Working Voltage: 15 to 36V DC direct current belt input polarity protection
Features:
High output power digital amplifier.
Two-channel stereo, sound quality is very good.
DC 15-36V power supply, with reverse polarity protection.
When heat sink temperature rises to a certain extent, the cooling fan will work.
Support BTL mode ( J1, J2, J3, J4 on the back of amplifier board should be shorted), 36V 3ohm for single channel with 220W output.
Package Included:
1 x TDA7498E Digital Audio Amplifier Board 2x160W Dual Channel Audio Amplifier Circuit Board High-Power Audio Amplifier Board For Home Audio Systems
