TB6612FNG Motor Driver TB6612 TB6612FNG Dual Motor Driver Module 1A for Arduino – Precision, Power, and Convenient

TB6612FNG Motor Driver-

The TB6612FNG is a popular dual-channel motor driver integrated circuit (IC) designed to control the direction and speed of DC motors. It’s commonly used in various applications like robotics, RC vehicles, and other projects that involve motorized systems. Elevate your motor-driven projects with the TB6612FNG Motor Driver. Its precise control, high current handling, and versatile design make it an essential component for a wide range of applications.

The Motor Driver TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes CW, CCW, short-brake, and stop.

The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.

Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

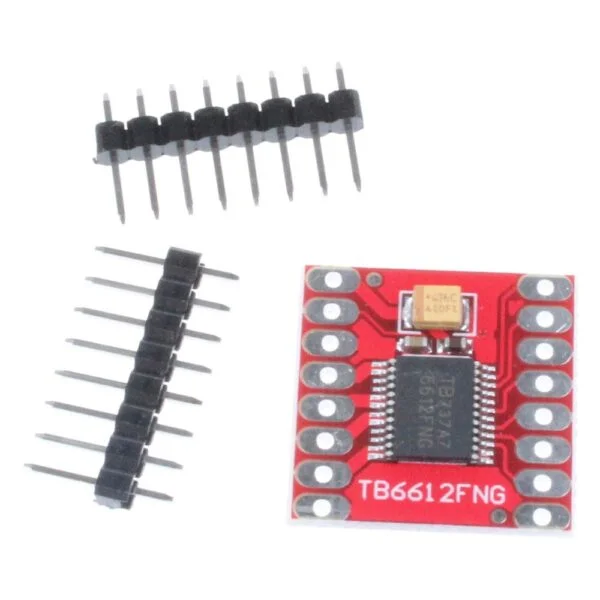

The board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out into two 0.1 pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other.

The TB6612FNG is equipped with an H-bridge circuit for each channel. This allows it to control the rotation direction and speed of two DC motors independently. The module provides two independent motor channels, allowing you to control two DC motors simultaneously.

It supports Pulse Width Modulation (PWM) for speed control. By adjusting the PWM signal’s duty cycle, you can vary the motor’s speed. The TB6612FNG module is designed to work with both 3.3V and 5V logic levels, making it compatible with a wide range of microcontrollers and digital systems.

The module will have a 3.2A specified maximum current rating per channel. It’s important to ensure that the motors being controlled do not exceed this current limit. This module is commonly used in projects involving robotics, motorized vehicles, drones, and other applications requiring precise control of DC motors.

Specifications

Features

Seamless Motor Management-

The TB6612FNG Motor Driver is engineered to provide precise and efficient control over your motors. With dual H-bridges, it ensures seamless forward, reverse, and brake functions. Whether you’re working on robotics, automation, or other motor-centric projects, this driver delivers reliable performance.

High-Efficiency Power Handling-

Built to handle high currents, the TB6612FNG driver empowers you to make the most out of your motors. It’s designed to minimize power loss, making it ideal for energy-conscious applications. Unlock the full potential of your motors without compromising efficiency.

Compact and Versatile Design-

With its compact form factor, the TB6612FNG driver can be integrated into a wide range of projects. Its compatibility with various microcontrollers and sensors adds to its versatility. Whether you’re a seasoned developer or just starting out, you’ll appreciate the flexibility it brings to your motor-driven creations.

Useful Link

Package Included

1 x TB6612FNG Motor Driver TB6612 TB6612FNG Dual Motor Driver Module 1A for Arduino
