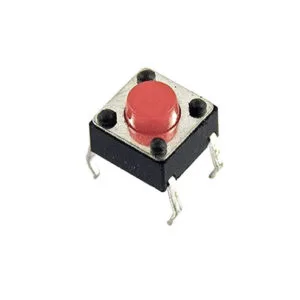

Tactile Switch 50mA 24V DC Small Mini Micro Tactile Push To ON Button

Description:

Tactile Switch consists of a simple electric switch mechanism which controls some aspect of a machine or a process. Buttons are typically made out of hard materials such as plastic or metal. The surface is usually shaped to accommodate the human finger or hand, so the Tactile Switch can be easily depressed or pushed. Also, most Tactile Switch is known as a biased switch, known as the push button. This is very easy to use.

Specifications:

• Mode of Operation: Tactile feedback
• Power Rating: MAX 50mA 24V DC
• Insulation Resistance: 100Mohm at 100v
• Operating Force: 2.55±0.69 N
• Contact Resistance: MAX 100mOhm
• Operating Temperature Range: -20 to +70 ℃
• Storage Temperature Range: -20 to +70 ℃

Features:

• Prevent flux rise by the insert-molded terminal
• Snap-in mount terminal
• Contact Bounce: MAX 5mS
• Crisp clicking by tactile feedback
• Dielectric Withstanding Voltage 250V AC for 1 minute

Application:

• Calculators
• Push-button telephones
• Kitchen Appliances
• Magnetic locks
• Various other mechanical and electronic devices, home and commercials.

Package Included:

1 x Tactile Switch 50mA 24V DC Small Mini Micro Tactile Push To ON Button
