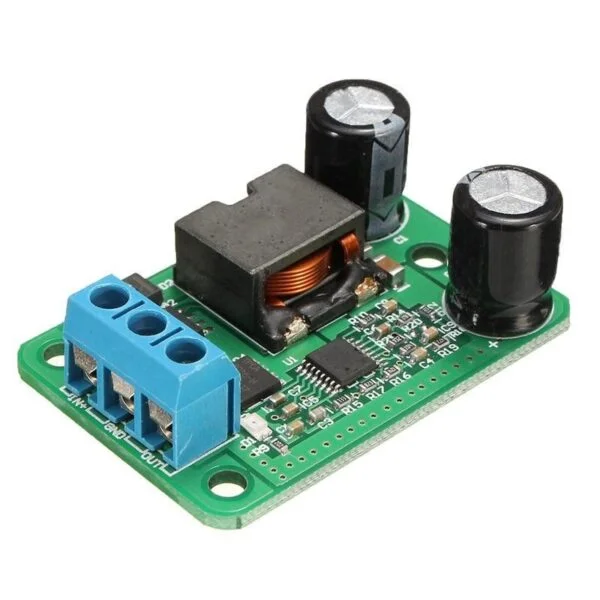

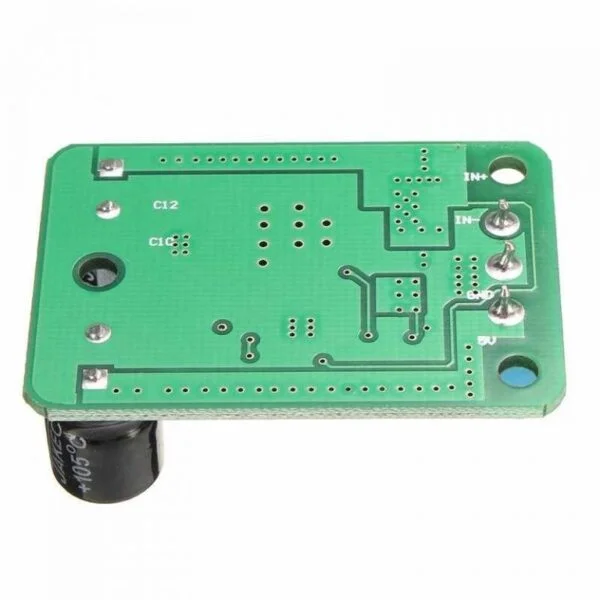

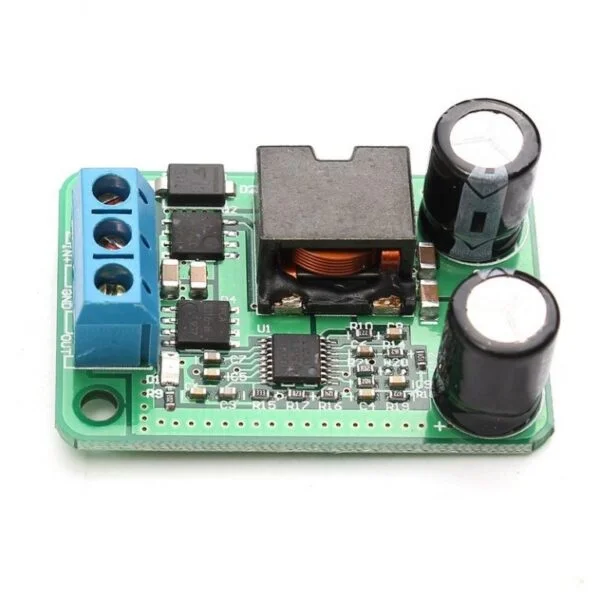

DC-DC Step-Down Buck Converter Power Supply Module 24V 12V 9V To 5V 5A 25W Replace LM2596S

This DC-DC Step-Down Buck Converter Power Supply Module provide all the active functions for a step-down (buck) switching regulator, capable of driving a load up to 5A with excellent line and load regulation. This module comes with variables but the fixed value of input i.e. 24V, 12V, and 9V  as well as fixed output voltage which is 5V 5A. The module requires a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed-frequency oscillator. And hence it replaces the purpose of LM2596S.

Buck Converter Specification:

• Input Voltage: 9-35V
• Output Voltage: 5V
• Output Current: 5A
• Output Power: 25W

Buck Converter Application:

• Simple High-Efficiency Step-Down (Buck)
  Regulator
• On-Card Switching Regulators
• Positive to Negative Converter

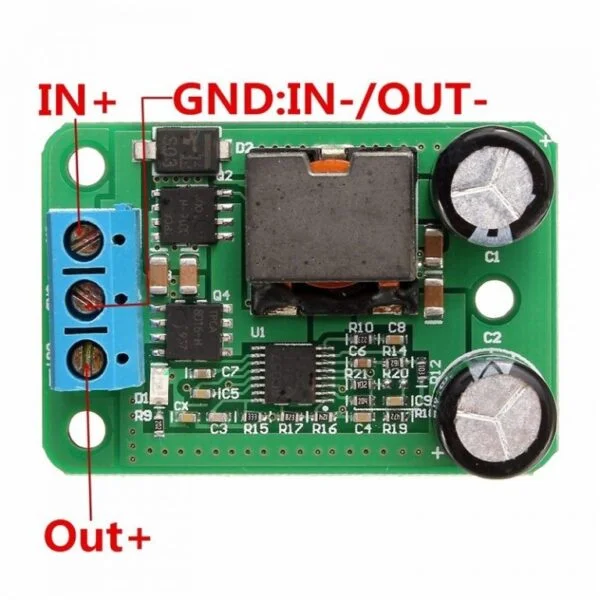

Pin Configuration:

• In+: Input positive
• Out+: Output positive
• GND: IN-/OUT

Package Included:

1 x DC-DC Step-Down Buck Converter Power Supply Module 24V 12V 9V to 5V 5A 25W Replace LM2596S
