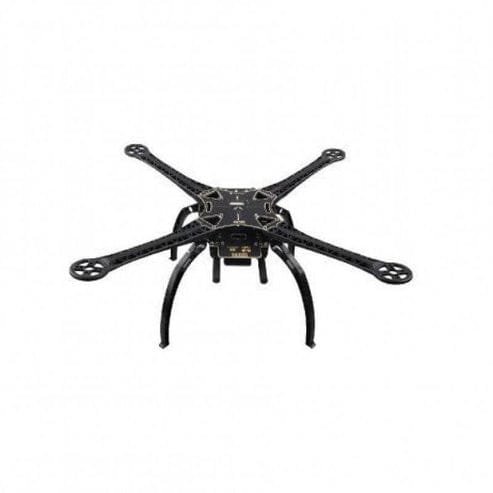

S500 Quadcopter Frame with Landing Gear S500 Multi Rotor Air PCB Frame with High Landing Gear for FPV Quad-Copter

Description:

The S500 Quadcopter Frame with Landing Gear is the up-gradation of the F450 Quadcopter Frame. It keeps everything that has made the F450 Quadcopter frame successful.

The main great advantage of this S500 Quadcopter Frame with Landing Gear is the arms have a slight upsweep, this gives the Quadcopter a dihedral effect which helps to make it very stable, especially when descending from altitude. The arms have a carbon fiber rod through the centre for making the strongest arms we have seen to date in this style of frame. The Blue and black arms make orientation much easier and there is no need for different color props.

This S500 Quadcopter Frame with Landing Gear is made from Glass Fiber which makes it tough and durable. They have arms of ultra-durable Polyamide-Nylon which are the stronger moulded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges, improving stability and providing faster forward flight.

The S500 Quadcopter Frame with Landing Gear is strong, light, and has a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESCs to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB(Power Distribution Board) and makes the mounting clean and neat. The S500 Quadcopter Frame with Landing Gear is a highly flexible frame during the mounting of various components like flight controller, battery, etc.

The landing gear has a ground clearance of 200mm and allows the mounting of the camera and other accessories at the bottom of the mainframe. The landing gear has plenty of height making it suitable for gimbals. The Plastic Landing Gear can withstand sudden crashes during the flying of FPV Quadcopters.

Specifications:

• Material: Glass Fiber & Polyamide-Nylon
• Wheelbase: 500mm
• Weight: 405gm
• Arm Size (L x W): 220x40mm
• Motor Mounting Hole Dia.: 3mm
• Landing Gear Material: ABS Plastic
• Landing Gear Height: 200mm
• Landing Gear Weight: 75gm

Features:

• S500 Quadcopter Frame with Landing Gear is easy to assemble and disassemble.
• The main glass fibre frame has good strength.
• The arm equips support ridges for better and faster forward flight.
• S500 Quadcopter Frame with Landing Gear features pre-threaded brass sleeves.
• Large mounting tabs for camera mounting.
• In-built power distribution board.
• The S500 Quadcopter Frame with Landing Gear is tough and durable.

Package Included:

• 1 x S500 Quadcopter Frame
• 4 x S500 Arms
• 1 x Landing Gear
• 2 x Special Pipes
• 4 x Pipe Supports
• 1 x Screw Accessories set. (Allen Head)
• 1 x Manual
