Orange Pi 5 16GB Rockchip RK3588S 8-Core 64 Bit Single Board Computer, Up to 2.4GHz and 8K Video Codec Support Development Board Run Orange Pi/Ubuntu/Debian/Android 12 OS
₹18999.00Original price was: ₹18999.00.₹15230.00Current price is: ₹15230.00.
Gigabit Ethernet
Rich interfaces, easy to expand
Multi-channel input and output
Supports NVMe SSD hard drives for massive capacity expansion
Orange Pi 5 uses Rockchip RK3588S new generation 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with 4GB/8GB/16GB (LPDDR4/4X), and up to 8K display processing capability.

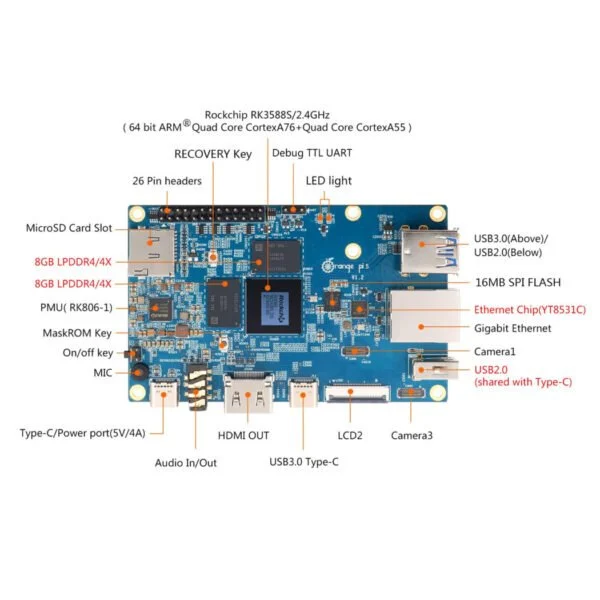

Orange Pi 5 provides abundant interfaces, including HDMI output, GPIO interface, M.2 PCIe2.0, Type-C, Gigabit LAN port, 2*USB2.0, 1*USB3.0, etc.; It can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Orange Pi 5 supports Orange Pi OS（Droid）, the official operating system developed by Orange Pi, Android 12 and Debian11.
Specifications:
SoC
Rockchip RK3588S (8nm LP process)
CPU
• 8-core 64-bit processor
• Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU
• Arm Mali-G610 MP4 “Odin” GPU
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
• 3D graphics engine and 2D graphics engine
NPU
Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
• HDMI2.1, up to 8K @60Hz
• DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
• 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera
• MIPI CSI 4Lane
• 2 * MIPI D-PHY RX 4Lane
Audio
CODEC: ES8388
• 3.5mm headphone jack audio input/output
• Input: Onboard MIC
• HDMI 2.1 eARC
Ethernet
10/100/1000Mbps Ethernet
Expansion Port
For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot
Support PCIe NVMe SSD
Support custom PCIe Wi-Fi6+BT5.0 module
Button
1×MaskROM key
1×Recovery key
1×On/Off key
Power Source
Support Type-C power supply, 5V @ 4A
LED
Power indicator: red
Status indicator: green
Debugging
3 Pin debug serial port (UART)
Supported OS
Orangepi OS (Droid), Orangepi OS (Arch), Ubuntu, Debian, Android12
Features:
Rockchip RK3588S 8-core 64-bit processor – Using an 8nm LP process, it is faster and consumes less power, bringing superior performance to various AI application scenarios.
Main frequency up to 2.4GHz
Support 8K video codec – Up to support 8K @ 60fps, the powerful video codec allows for clearer images and more detailed picture quality.
Package Included:
1 x Orange Pi 5 16GB Rockchip RK3588S 8-Core 64 Bit Single Board Computer, Up to 2.4GHz and 8K Video Codec Support Development Board Run Orange Pi/Ubuntu/Debian/Android 12 OS
