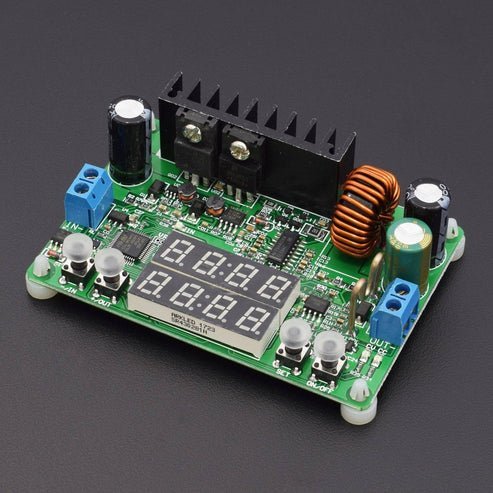

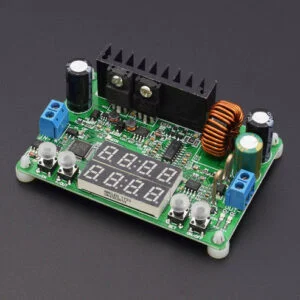

Numerical Control Voltage Regulator DC 6-40V to 0-32V 5A Buck Converter, 24V 12V to 5V Constant Voltage Current Step Down

• Input Voltage: 6-40.00V
• Output Voltage: 0-32.00V
• Output Current: 0-5.100A
• Output Power: 0-160W
• Output Voltage Resolution: 0.01V
• Output Current Resolution: 0.001A

Description:

It is a DC 6-40v to 0-32V adjustable cc cv buck converter with a Volt amp display. Dual LEDs accurately display Volts and amps press the “off / on” button to turn on/off the output at a no-load state, and press “in” or “out ” to switch between input current Voltage and output current Voltage

Specification:

• Input Voltage: 6-40.00V
• Output Voltage: 0-32.00V
• Output Current: 0-5.100A
• Output Power: 0-160W
• Output Voltage Resolution: 0.01V
• Output Current Resolution: 0.001A
• Output Voltage Accuracy: +/- (0.5% + 1 digits)
• Output Current Accuracy: +/- (1% + 3 digits)
• Ripple Wave (full load 40v to 32V/5A): about 100 mV

Features:

• Numerical control: there are “-” button for decreasing output Voltage/current and an output adjustment “+” for increasing output Voltage/current in setting mode
• Dual LEDs accurately display Volts and amps press the “off / on” button to turn on/off the output at a no-load state, and press “in” or “out ” to switch between input current Voltage and output current Voltage
• Constant current and constant Voltage indication: when the module is in the state of constant Voltage (cv) or constant current (cc), the cc or cv LED will light on
• Store set value automatically: in the operation process, the LED display state, output current and output Voltage setting value and output state will be automatically stored

Package Included:

1 x Numerical Control Voltage Regulator DC 6-40V to 0-32V 5A Buck Converter, 24V 12V to 5V Constant Voltage Current Step Down
