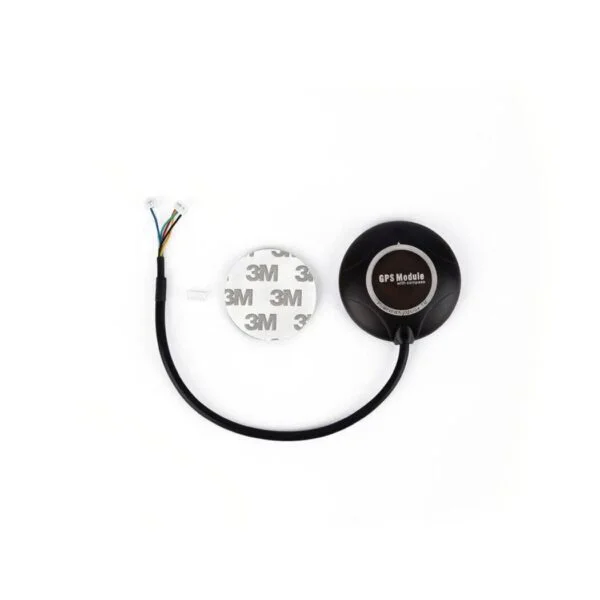

NEO 7M GPS Module NEO 7M GPS With Compass for APM 2.6/2.8 and Pixhawk 2.4.6/2.4.8

Description:

If you are wandering to navigate the distance with a drone then this NEO 7M GPS Module is needed. GPS drones are equipped with a NEO 7M GPS Module that lets them know their location relative to a network of satellites. Connecting to signals from these satellites allows the drone to perform functions such as position hold, autonomous flight, return to home, and waypoint navigation.

NEO 7M GPS Module that includes an HMC5883L digital compass. The new NEO 7 series is a high-sensitivity, low-power GPS module with 56 channels and outputs precise position updates at 10Hz. This NEO 7M GPS Module also comes with a molded plastic case which keeps the module protected against the elements making it ideal for use on your aircraft or quadcopter.

This NEO 7M GPS Module uses an active circuitry ceramic patch antenna to provide an excellent GPS signal which outperforms the older Neo 6 series modules. This NEO 7M GPS Module also includes a rechargeable backup battery to allow for HOT starts and also includes an I²C EEPROM to store the configuration settings.  Out of the box, this NEO 7M GPS Module is configured to run at 38400 Baud and is configured to run with APM/Pixhawk systems.  This NEO 7M GPS Module includes two cables, a 6-pin connector for the GPS module, and a 4-pin connector for the i2c compass.

Specifications:

• Model: NEO 7M
• Receiver Type: 56 Channels, Galileo E1B/C1, GPS L1C/A, QZSS L1C/A, SBAS L1C/A
• Receiver Frequency: L1 [1575.42MHz]
• Input Supply Voltage: 3.5 ~ 5.5V DC
• Main Chip: U-BLOX NEO-7M
• Sensitivity (dBm): -155, -160, Cold Start (without aiding): -147 dBm, Tracking & Navigation: -161 dBm
• Position Accuracy: 2, 2.5Meter
• Acceleration: <4g
• Navigation Update Rate: 5Hz
• Operating Temperature Range: -24 to 84°C
• Tracking Sensitivity: -161 DBM
• Co-Ordinate System: WGS-84
• Capture Time: 0.1s Average
• Avg Cold Start Time: 38s
• Warm Start Time: 35s
• Boot Time: 1S
• Maximum Altitude: 18000m
• Maximum Speed: 515 m/s

Features:

• Locate performance
• Super Bright LED
• compass on board
• 4-pin connector for only GPS use
• 1Hz (Default) Changed to 5Hz!
• Permanent Configuration Retention
• Output GGA, GSA, and RMC frames
• 38400 bps (Default) Changed to 115200bps!
• 4-pin connector for compass only use
• The 6-pin connector for EZ connects to MEGA BLACK
• NEO 7M GPS Module can use both 4 pins at once.
• Backplane with Standard Mk style mounting holes 45mm X 45mm
• These are Pre-configured, Flashed with the correct settings, and tested. To make them Plug and Play.

Package Included:

1 x NEO 7M GPS Module NEO 7M GPS With Compass for APM 2.6/2.8 and Pixhawk 2.4.6/2.4.8
