MAX30102 Heart Rate Sensor Pulse Oximeter Module Heart Rate Monitor Module for DIY Projects Wearable Electronics Heart Rate Sensor Medical Device Pulse Oximeter Module

Description :

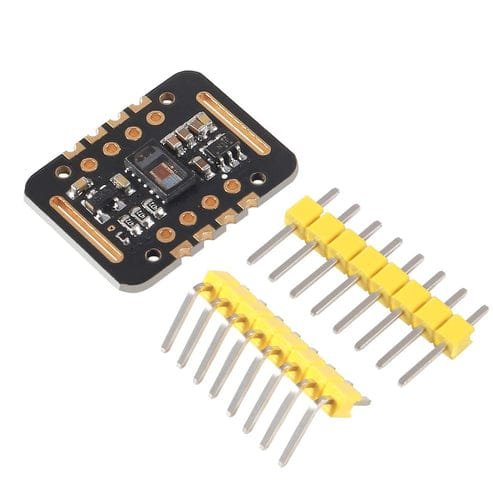

This is a MAX30102-based pulse oximetry and heart-rate monitor breakout board. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices.

The MAX30102 Heart Rate Sensor operates on a single 1.8V power supply and a separate 3.3V power supply for the internal LEDs.The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

It is widely used in wearable devices, fitness assistant devices, smartphones and tablets.

Specifications:

• Model: MAX30102
• Product Type: Oximeter Sensor Module
• Colour: Black
• Operating Voltage: 3.3-5V
• Interface: 12C Interface
• Detection Signal Type: Light Reflection Signal (PPG)
• LED Peak Wavelength: 660nm/880nm

Features :

• High sensitivity
• Low power consumption
• Integrated LED driver
• Ambient light rejection
• Small in size, making it easy to integrate into wearable devices or other compact designs.
• I2C interface

Applications:

• Fitness Assistant Devices
• Wearable Devices
• Medical Monitoring Devices

Package Included:

1 x MAX30102 Heart Rate Sensor Pulse Oximeter Module Heart Rate Monitor Module for DIY Projects Wearable Electronics Heart Rate Sensor Medical Device Pulse Oximeter Module
