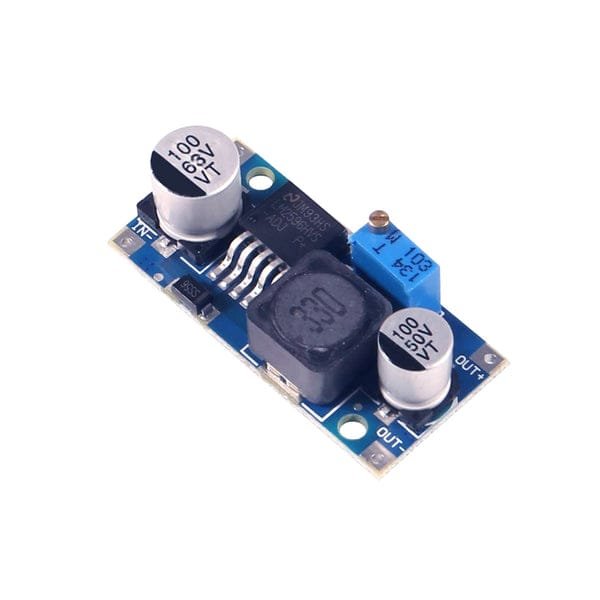

LM2596HVS DC-DC Buck Converter 4.5-50V to 3-40V Adjustable Step Down Power Module

Description:

LM2596HVS module is a high input voltage version of the LM2596 Module. The LM2596HV module is a DC to DC converter buck converter module with an input voltage range of 4.5 to 50 volts and an output of 3 to 40 volts. This output is variable and can be varied using the on-board multi-turn potentiometer.

Specifications:

• Output Voltage: 3 ~ 35V
• Max. Output Current: 3A
• Conversion Efficiency: up to 92%
• Switching Frequency: 150 KHz
• Output Ripple: 30mA
• Load Regulation: ±1%
• Voltage Regulation: ± 0.5%
• Operating Temperature: -40 to 85°C

Features:

• 4.5 Volt – 50 Volt adjustable input voltage range.
• 3 volt – 40 Volts adjustable output voltage range.
• With over-current and over-temperature protection, it is safe for use.
• Fine workmanship, long life span.
• You can set the float voltage and charge current.
• Special design enhanced heating radiating.

Package Included:

1 x LM2596HVS DC-DC Buck Converter 4.5-50V to 3-40V Adjustable Step Down Power Module
