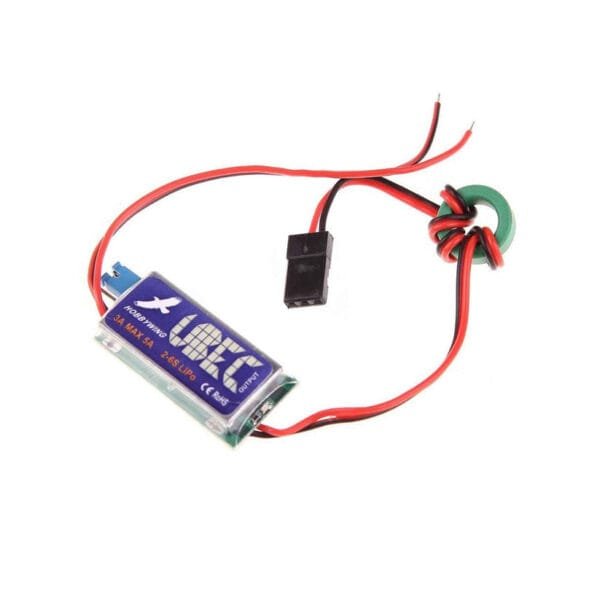

Hobbywing 5V/6V 3A Switch-Mode UBEC, Max 5A Lowest RF

Description:

A UBEC (universal battery eliminator circuit) is purely a device that converts high-voltage (such as 25V from a 6S LiPo) to lower voltages to allow the full UAS to be powered from one primary battery source, The 5V/6V 3A Switch-Mode UBEC is a Switch-mode DC regulator separated from ESC (ESC) Electronic Speed Controller for brushless/brushed motor), it will take high-voltage (5.5V to 26V) power from your battery pack and convert it to a consistent safe voltage for your receiver, gyro and servo.

The 5V/6V 3A Switch-Mode UBEC Module is designed with an advanced switch-mode DC-DC regulator IC which eliminates the fear of overheating. It offers a powerful output with 5V and 3A.

Specifications:

• Input: 5.5V-26V (2 to 6 cells Lipo battery pack, 5 to 18 cell NiMH battery pack)
• Output: 5V/3A and 6V/3A switchable
• Ripple: 50mVp-p(@2A/12V)
• Continuous Current: 3A

Features:

• Shows the working status with an indicator (LED), lights when the output is in the normal range
• 5V/6V 3A Switch-Mode UBEC supplying a consistent safe voltage for your receiver.

Package included:

1 x Hobbywing 5V/6V 3A Switch-Mode UBEC, Max 5A Lowest RF
