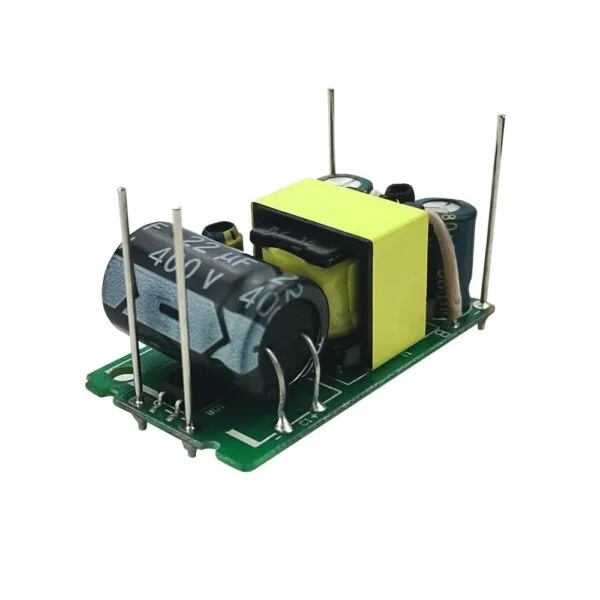

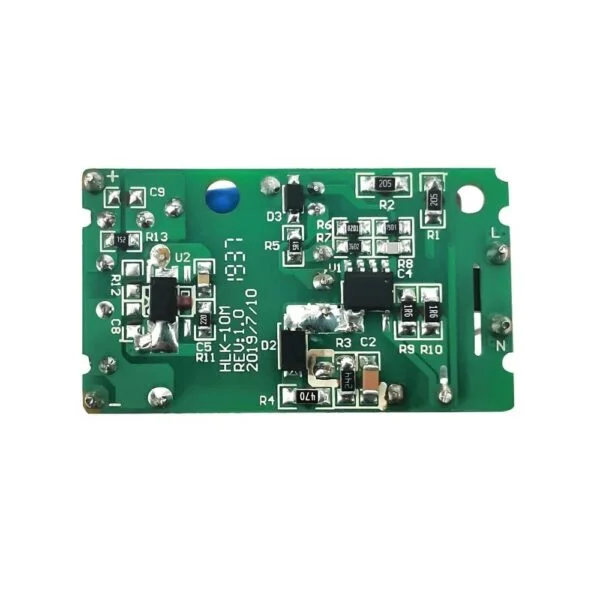

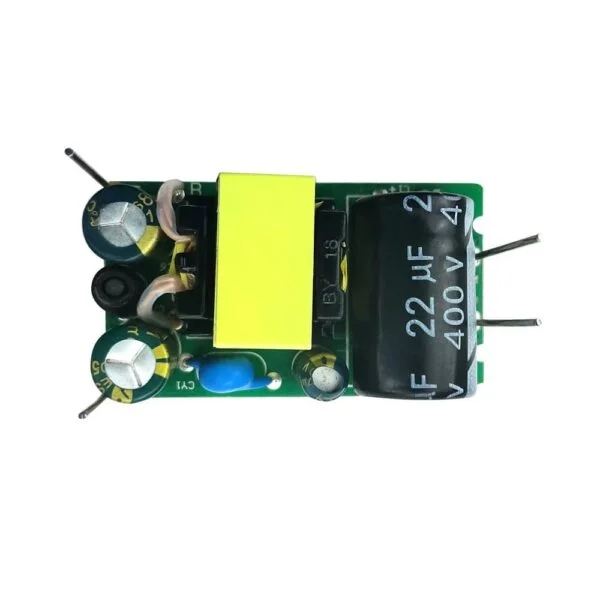

This is an open frame type power supply module from Hi-Link. This module is the same as Hi-Links HLK-10M12 the only difference is that HLK-10M12L is open open-frame type Power Supply. The HLK-10M12L Open Frame Power Module is a power supply module designed to convert electrical power from one form to another. Specifically, it’s designed to take in an input voltage and provide a stable output voltage of 12V.
HLK-10M12L 12 volts 10 watt AC to DC Step Down PCB Mount Board HLK-10M12L from Hilink is an isolated switching step-down power supply module and can supply 12 volts DC from 120 Volts to 230 Volts AC input and has a power rating of 10 watts.
This compact size power module makes it perfect to use in places where size is a constraint. HLK AC to DC power supply modules is a compact PCB mountable plastic enclosed power supply module. HLK-10M12L Power Supply Module replaces lots of parts from the traditional power supply like diodes, voltage regulators, and transformers.
HLK Power Supply modules are perfect solutions if you want your power supply on PCB. Hi-link AC to DC Power supply modules are widely used in various applications like smart homes, communication equipment, automation and control and various other industries.
The module is designed to accept a wide range of input voltages, often around 100-240V AC, making it compatible with different electrical systems worldwide. The module has a fixed output voltage of 12V DC, which is commonly used in many electronic devices and applications.
The module is designed in an open frame style, which means it doesn’t have an enclosed casing. This can be advantageous in applications where space or ventilation is a concern. These modules are designed to be efficient in converting electrical power, which means they waste less energy in the form of heat during the conversion process.
The HLK-10M12L Open Frame Power Module is a compact yet highly efficient power solution for your electronic projects. Its open-frame design allows for easy integration, making it an ideal choice for space-constrained applications. The HLK-10M12L Open Frame Power Module can be used in a wide range of applications, including powering electronic devices, embedded systems, IoT devices, and various industrial and consumer electronics.
Caution: It’s important to consider factors like load requirements, ambient temperature, and protection features to ensure a reliable and safe power supply in your specific application
Specifications
Model No: HLK-10M12L
Operating Temp: -25~60
Universal Input: 85-264VAC
Protection Ocp, Ovp, SCP, IP65
Isolation: 3000VAC
Output: 24 Volts 420mA
Function: Low Ripple, High Power
Features
Compact and Efficient-
The HLK-10M12L Open Frame Power Module is a compact yet highly efficient power solution for your electronic projects. Its open-frame design allows for easy integration, making it an ideal choice for space-constrained applications.
Reliable Performance-
Built with high-quality components, this power module delivers consistent and reliable performance. Whether you’re powering a sensitive electronic device or an industrial application, you can trust in its stability and dependability.
Versatile Applications-
With its wide input voltage range and robust design, the HLK-10M12L module is suitable for a variety of applications. From IoT devices to automation systems, it provides a flexible and dependable power source for your projects.
