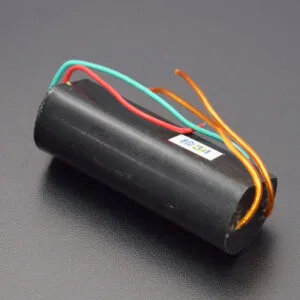

High Voltage Transformer Generator for DC 3V-6V to 400kV 400000V Boost Step-up Power Module

Description:

The high-voltage module uses the principle Tesla coil is made of high-voltage pulse output voltage current, small size, high efficiency, simple external circuit (just plug in the switch, the battery can be) discharge intensity violent. This module is a small production with high-pressure science inverter transformer/booster finished module, the input terminal DC 3V – 7.2V can get 20KV DC high voltage (about 1-2 cm arc) at the output can be used as high school science experiments, electronic equipment, negative ion generator, high voltage source to use when making small science.

Specifications:

• Input Voltage: DC 3 V to 6 V
• Input Current: 2 A – 5 A
• High-Pressure Type: the type of pulse current
• Output Voltage: 400000 v (Please pay attention to safety)
• High-Pressure Discharge Distance Between 10 mm – 20 mm
• Output high voltage wire length: 100 mm
• Input power cord length: 100 mm (the red line is positive)

Wiring:

• Red connection:”+”
• Green connection: “-“
• output: the other side, same color cable

Work:

Intermittent, continuous work does not allow more than 1 minute and the output side does not allow shorting. Improper voltage and long working hours easily damaged the module

Note:

The high-voltage module should avoid the use of electricity in high voltage no-load. (Power must be adjusted to a suitable distance to the high-voltage output line, battery capacity is proportional to the distance and the use of the high-pressure arc (not a voltage as high as possible, you must provide enough current). Experimental test of the arc distance from short to long, do not exceed the maximum arc distance electricity, energy can not be released due to high pressure, can easily damage the module.)

Package Included:

1 x High Voltage Transformer Generator for DC 3V-6V to 400kV, 400000V Boost Step-up Power Module
