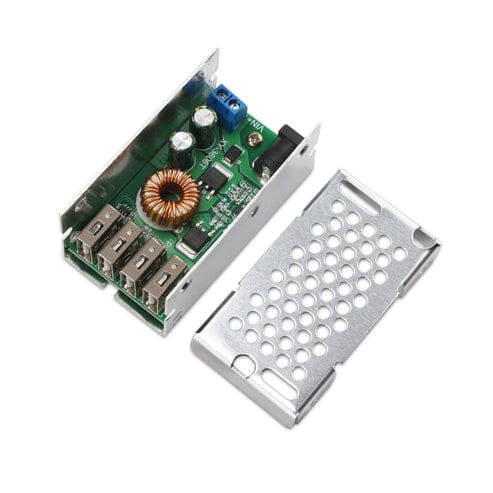

DC-DC Buck Power Supply Module 9-36V to 5V Low Voltage Regulator Converter 5A 25W Volt Transformer with 4 USB Port

Description:

This is made for DC voltage step down 9-36V to 5V, this 25W power module is designed with reverse connection protection and output short circuit protection. Its synchronous rectification technology makes this item more stable and efficient; it allows wide voltage input and high current working. It comes with terminal blocks and a DC socket, no need for any soldering work, and it is easy to make it work. To power this module, you can use a suitable DC adapter or connect the terminal blocks with 4 USB ports, all of them have fast charge recognition chips which are compatible with Androids and iPhones. Also with a fine and hard aluminium shell covered, this buck voltage module is strong enough to protect this power module well.

Specifications:

• Operating Voltage: DC9 -36V
• Output Voltage: 5V/5A/25W
• Protection Function: reverse connection protection and output short circuit protection
• Input and Output Example:
  • Input 9-24V, output 5V/6A/30W
  • Input 24-32V, output 5V/5A/25W
  • Input 32-36V, output 5V/3.5A/18W

Features:

• With terminal blocks and DC sockets, no need for any soldering work, it is easy to make it work.
• To power this module, you can use a suitable DC adapter or connect the terminal blocks.
• With 4 USB ports, all of them have fast charge recognition chips which are compatible with Androids and iPhones.
• With fine and hard aluminium shell covered.

Application:

This voltage regulator module can be used for DIY USB charging ports of cars, motorbikes, mobile power banks, batteries, etc; and it can also be used to charge Mp3 and mobile phones. (To protect your device, please test real output when you power it and then start to charge your appliance)

Note: Charging current is up to the inner power tube’s IC of your phone. Therefore, even though this module can output 5A, that doesn’t mean it can charge a phone with 5A.

Package Included:

1 x DC-DC Buck Power Supply Module 9-36V to 5V Low Voltage Regulator Converter 5A 25W Volt Transformer with 4 USB Port
