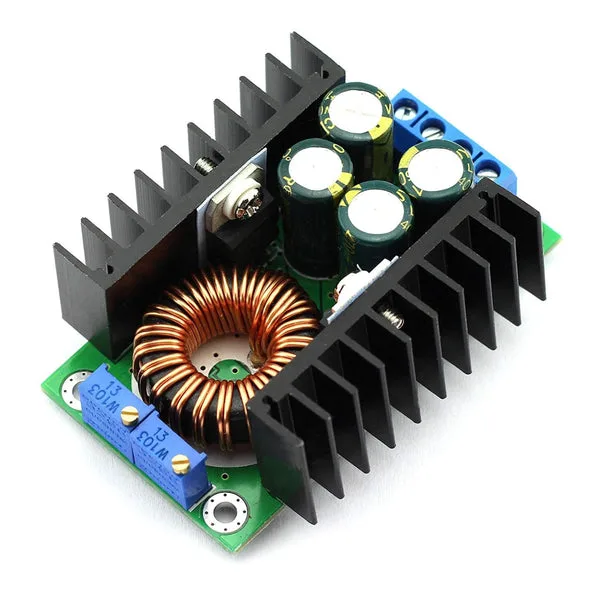

300W 12A DC-DC Buck Converter Step-Down 7-32V TO 0.8-28V Adjustable Power Supply Module contains two large aluminum heat sinks ensuring better heat dissipation and more stable performance. It contains five low resistance capacitors of 470uF/35V in parallel especially for the switch mode power supply, a 23mm large magnet, and 1.0 copper wire to provide high-efficiency work. For safe module operation, this module contains a TVs Diode to prevent voltage surge from breaking the chip. This module is widely used for storage batteries, power transformers, DIY adjustable regulated power supply, industrial equipment, 12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, etc.
This module can be applied to the input voltage floating relatively large, the output requirements of more stable areas. Such as:
12V battery (10-14V) regulated output 12V, 12V power supply to the device, 24V battery regulator 24V; can be used as a car power supply
Solar panel voltage regulator, solar panel voltage fluctuations are relatively large, this module can regulate the output, to the device power supply or to charge the battery to use.
Driving high-power LED lights, constant current drive, such as 12V battery drive 4 string LED lights, LED and battery voltage difference between this time.
Specifications:
Input Voltage: DC 7-32V
Output Voltage: 28V
DC 1.2-28V continuously adjustable
Fixed output: Choose between 0.8v-28v
Output Current: 8A (when the power tube’s temperature exceeds 65 degrees, please add a cooling fan)
Constant Current Range: 0.2-8A (Adjustable)
Turn Lamp Current: Constant current value * (0.1)
Lowest Pressure: 1V
Output Power: Maximum power is about 200W
Conversion Efficiency: Up to about 95%
Operating Frequency: 300KHZ
Output Ripple: 20M bandwidth
Input 24V output 12V 5A ripple around 50mV (Excluding noise)
Wiring: Terminal
No-Load Current: Typical 20mA (24V switch 12V)
Load Regulation: ± 1% (Constant)
Voltage Regulation: ± 1%
Dynamic Response Speed: 5% 200uS
Potentiometer Adjustment Direction:
Clockwise (increase)
Counterclockwise (decrease)
Operating Temperature: -40 °C to +85 °C
Charging indicator light is Red
The Greenlight means fully charged
Features:
The Buck Converter Module has a high output current, the max output current can reach 8A.
Using large-size Sendust Core and double pure copper wiring improves working efficiency, and reduces fever.
3296 multi-turn potentiometer, high accuracy voltage and current regulation, good stability.
Double colour lamp, working condition be clear at a glance
Voltage and current are adjustable, which effect is good.
Applications:
High-power LED driver
Lithium battery (or lead accumulator) charge
Vehicle-mounted power supply
Low voltage system power supply
6V, 12V, 14V, 24V battery charge
On-board laptop power supply
Regulated power supply
Low voltage power supply system
Pin Description:
Package Included:
1 x DC-DC 12A 300W Buck Converter Board 7-32V to 0.8-28V Buck Converter DC-DC 300W Step-Down Power Supply Module 12A Buck Converter Module With CC/CV Control
