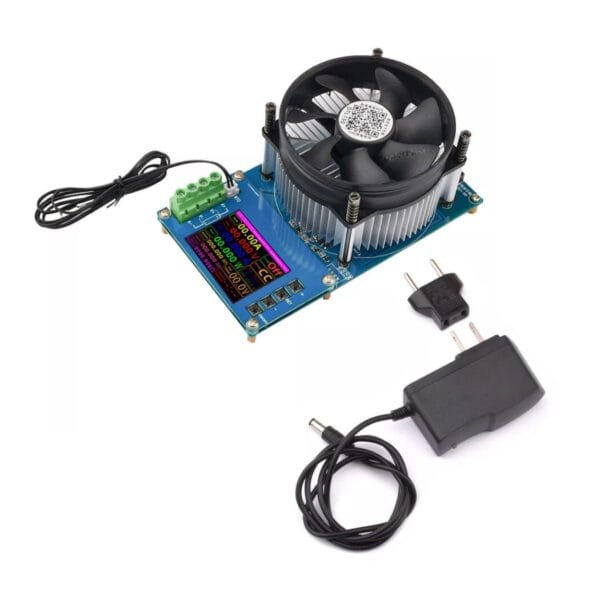

Black 2.4″ 150W DC Load Battery Tester 150W DC Electronic Load Meter Portable Battery Tester High-Power 150W DC Load Battery Tester with Black 2.4 Inch Display

Description:

Black 2.4 Inch 150W DC Electronic Load  Power Supply Meter DC Tester Electronic Load Lithium Battery Capacity Monitor Discharge Charge Power Meter Supply Checker

Specifications:

• Power Range: 0~999.999 Wh
• Impedance Range: 0~9999.999Ω
• Temperature Range: -50℃ ~120℃
• OVP-Voltage over-limit protection setting range: 0~150V, default 150V
• OCP-Current overrun protection setting range: 0~20A, default 20A
• OPP-power over limit over limit setting range: 0~150W default 150W
• Low Voltage Stop Range: 0~150V
• Measurement Rate: about 0.5 times/sec
• Refresh Time: >500ms/time
• Running Time Accumulation Function: >0.05A start to record accumulated time
• Screen Standby Time: Always on or 0~99 seconds
• Fan Control Threshold: Temperature>40℃, the fan is automatically turned on.
• Fan Cooling Power: ≤150W
• Set Over-limit Alarm Mode: Interface alarm and buzzer alarm

Features:

• Protection against overvoltage, overcurrent, overvoltage, overheating and reverse connection below 100V.
• Supports timed shutdown and specified voltage shutdown.
• Four-wire wiring system for more accurate capacitance measurement.
• Active heat dissipation at load current above 3A or core temperature ≥40℃ to start the fan.

Package Included:

1 x Black 2.4″ 150W DC Load Battery Tester 150W DC Electronic Load Meter Portable Battery Tester High-Power 150W DC Load Battery Tester with Black 2.4 Inch Display
