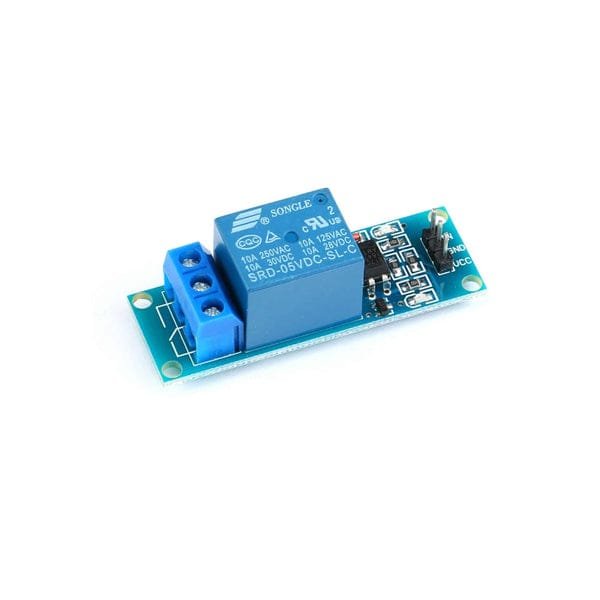

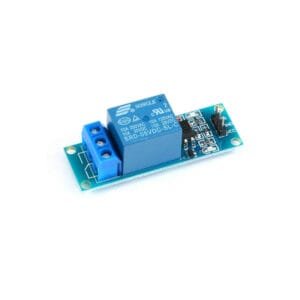

5V 1 Channel Relay Module 1 Channel 5V Relay Module with Optocoupler

Description:

This is a 5V 1 Channel Relay Module For Arduino PIC AVR DSP ARM. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it. Each one needs a 15mA – 20mA driver current and is equipped with a high current relay: DC 5V / 10A, AC 250V / 10A. Standard interface that can be compatible with microcontroller.

Specifications:

• Operating Voltage: 5V
• Relay Contact Current Capacity at AC250V: 10A
• Relay Contact Current Capacity at DC5V: 10A
• Max Current: 10A

Features:

• One normally closed contact and one normally open contact
• Triode drive, increasing relay coil
• 5V 1 Channel Relay Module has a high-impedance controller pin
• Pull-down circuit for avoidance of malfunction
• Power supply indicator lamp
• Control indicator lamp
• 5V 1 Channel Relay Module has an indicator for Relay output status
• Can Be controlled by various appliances & other Equipment With Large currents.
• Standard TTL Level logic controlled (AVR, Arduino, 8051, PIC, ARM)

Package Included:

1 x 5V 1 Channel Relay Module 1 Channel 5V Relay Module with Optocoupler
