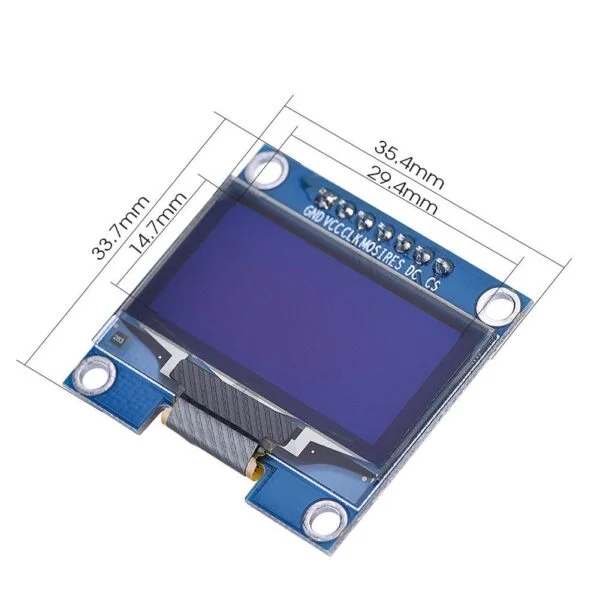

1.3” SPI I2C Serial 128X64 White OLED LCD Display Screen Module SSH1106 7 Pin for Arduino 51 UNO R3

Original price was: ₹249.00.Current price is: ₹169.00.

High resolution:128*64
Viewing angle:>160
Ultra-low power consumption:full screen lit 0.08w

SKU: 85369090, RS1187 Categories: OLED, Display

Description
Reviews (0)

Needn’t backlight the display unit can self-luminous
2) High resolution:128*64
3) Viewing angle:>160
4) Ultra-low power consumption:full screen lit 0.08w
5) Voltage 3v-5vdc
6) Work temp : -30c-70c
7) Interface: SPI

Pin Description:

1) GND: Power ground
2) VDD:2.8-5.5V power supply
3) SCK: CLK clock
4) SDA: MOSI data
5) RES: Reset
6) DC: data / command
7) CS: chip-select signal

Specifications:

1.3″ 128×64 I2C blue OLED LCD display
Interface: SPI
Driver IC: SSH1106
Word color: White
Supports many control chip: fully compatible with Arduino 51 series,msp430 series, stm32/2 CSR IC, etc.
