Waveshare PL2303 USB UART Board (Type C), USB To UART (TTL)
Waveshare PL2303 USB UART Board (Type C), USB To UART (TTL)
  1. Waveshare PL2303 USB UART Board (Type C), USB To UART (TTL)
  2. Waveshare PL2303 USB UART Board (Type C), USB To UART (TTL)

Waveshare PL2303 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

Original price was: ₹365.00.Current price is: ₹249.00.

PL2303 USB UART Board Features:

  • Adopts PL2303GS new version device
  • Supports Windows XP/7/8/10/11/
  • 3x LED indicators: TXD, RXD, PWR
SKU: RS4087 Categories: ,

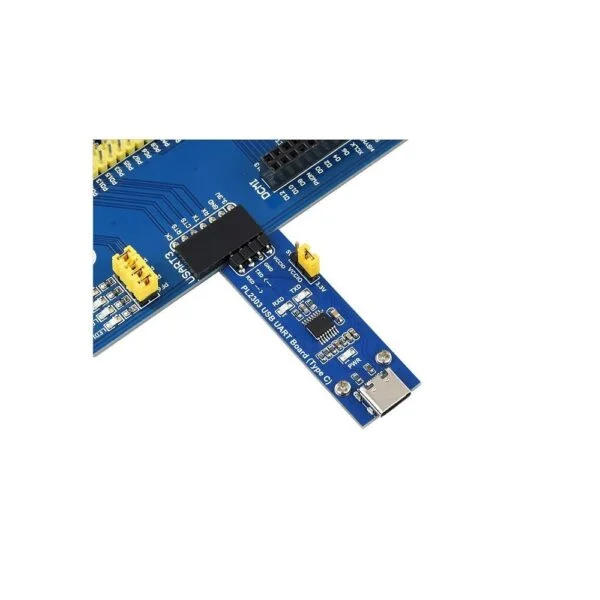

This is the PL2303 USB UART board converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB-C bus and will appear as a standard COM port.

Pin connections of PL2303 USB UART Board:

  • VCCIO 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
  • GND GND
  • TXD MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
  • RXD MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)

PL2303 USB UART Board Features:

  • Adopts PL2303GS new version device
  • Supports Windows XP/7/8/10/11/
  • 3x LED indicators: TXD, RXD, PWR

PL2303 USB UART Board Specifications :

  • Operating Voltage(V) : 3.3 to 5
  • No. of Pins : 4

Package Included:

1 x PL2303 USB UART Board (Type C)

1 x 4-pin custom connector jumper wire
