CH343G is a USB bus adapter chip, which can convert USB to a high-speed asynchronous serial port, supports automatic identification and dynamic self-adaptation of communication baud rate of 115200bps and below, and provides commonly-used MODEM contact signals to expand asynchronous serial ports for computers. It can upgrade a common serial device or MCU directly to a USB bus.
Parameter:
Product Type USB to 485
Power Supply 5V
Communication Rate 50bps ~ 3Mbps
Operating System macOS, Linux, Windows 11 / 10 / 8.1 / 8 / 7, Android
Features:
Support USB to RS485 bidirectional conversion
Fast communication, stable and reliable, better compatibility
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
3 LEDs for indicating the power and transceiver status
Point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
LED INDICATORS
PWR
Red power indicator, light up when there is USB connection and voltage is detected
TXD
Red TX indicator, light up when the USB port sends data
RXD
Red RX indicator, light up when the device ports send data back
OPERATING ENVIRONMENT
Temperature
-15℃ ~ 70℃
Humidity
5%RH ~ 95%RH
OPERATING SYSTEM
Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP
Package Included:

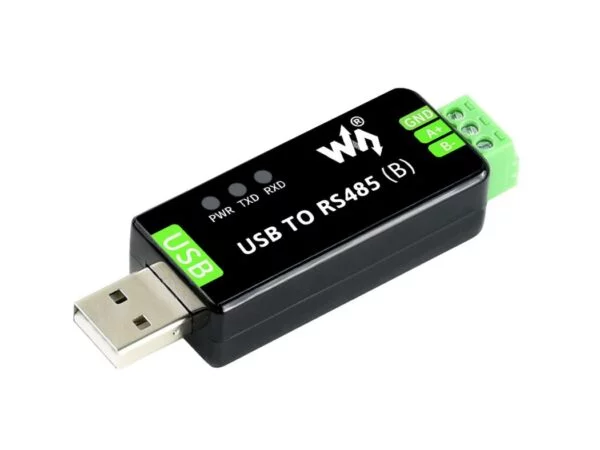

USB TO RS485 (B) x1
USB-A male-to-female cable x1
Screwdriver x1
