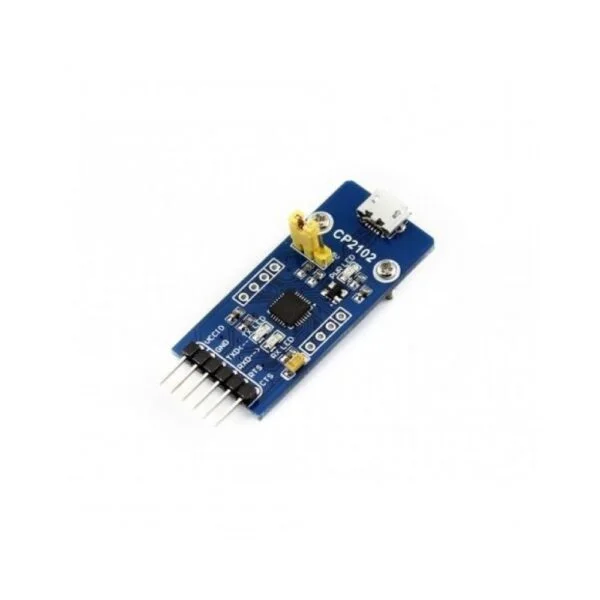

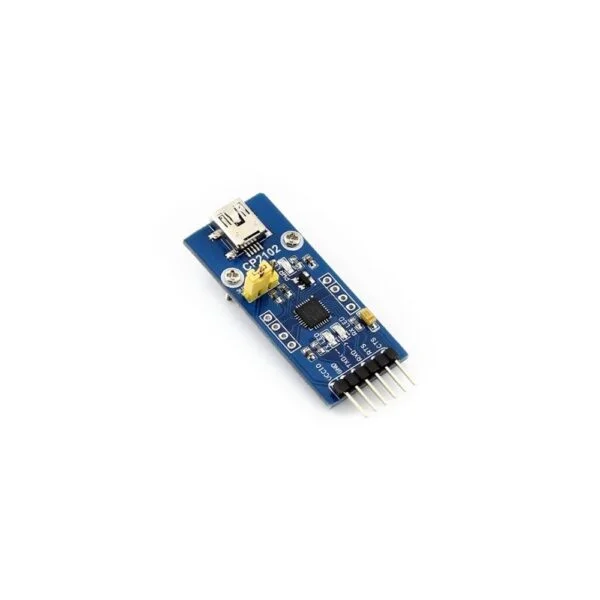

Waveshare CP2102 USB UART Board (Micro-USB)

The CP2102 USB UART Board (micro) is an accessory board that features the single-chip USB to UART bridge CP2102 onboard. It features Single-Chip USB to UART Data Transfer with no external resistors required, no external crystal required and an on-chip power-on reset circuit and voltage regulator.

The USB suspend states supported via SUSPEND pins and UART has all handshaking and modem interface signals.

This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus and will appear as a standard COM port.

Pin connections of FT232 USB UART Board:

• VCCIO 3.3V or 5V output (the module is powered from USB, the onboard jumper should be shorted to 3.3V or 5V)
• GND GND
• TXD MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
• RXD MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
• RTS MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
• CTS MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

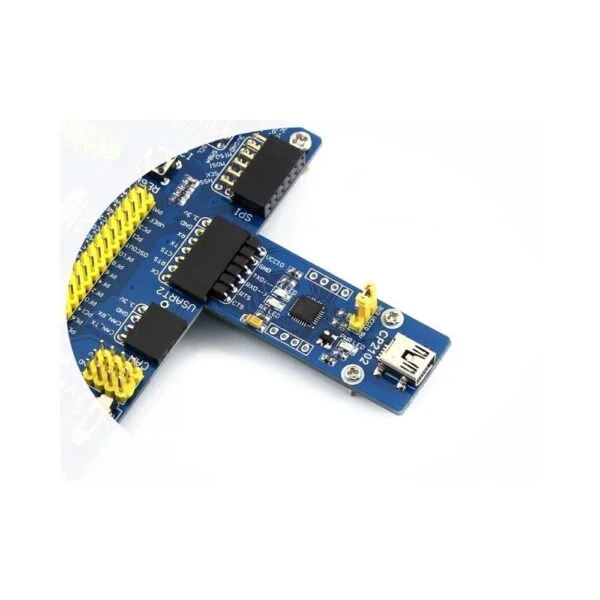

This breakout also allows you to connect the TX/RX pins of your favorite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement.

CP2102 USB UART Features:

• Single-Chip USB to UART Data Transfer.
• Integrated 1024-Byte EEPROM.
• USB Specification 2.0 compliant; full-speed (12 Mbps).
• USB suspend states supported via SUSPEND pins.
• All handshaking and modem interface signals.
• 576 Byte receive buffer; 640 bytes transmit buffer.
• Hardware or X-On/X-Off handshaking supported.
• Virtual COM Port Device Drivers.
• USB Xpress Direct Driver Support.
• Other pins are accessible on drilled holes, easily connected to the user application system (separate pin headers are provided)

CP2102 USB UART Specifications :

• Operating Voltage (VDC) : 3.3 ~ 5v
• Integrated USB protection device : SP0503
• UART Baudrate : 300 bps to 1 Mbits

Package Included:

• 1 x CP2102 USB UART Board (micro)
• 2 x 4-pin male pin header & 4-pin female pin header
• 1 x 6-pin custom connector jumper wire
