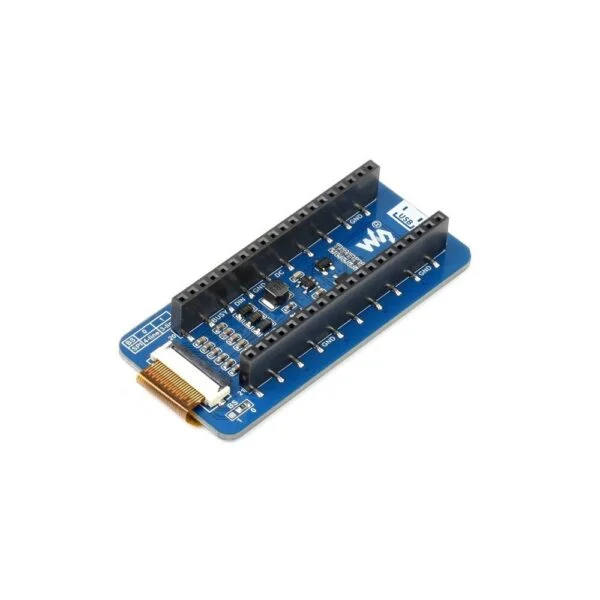

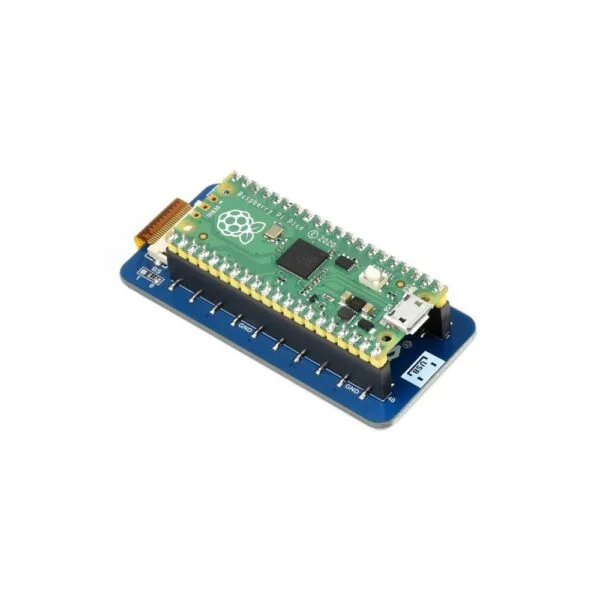

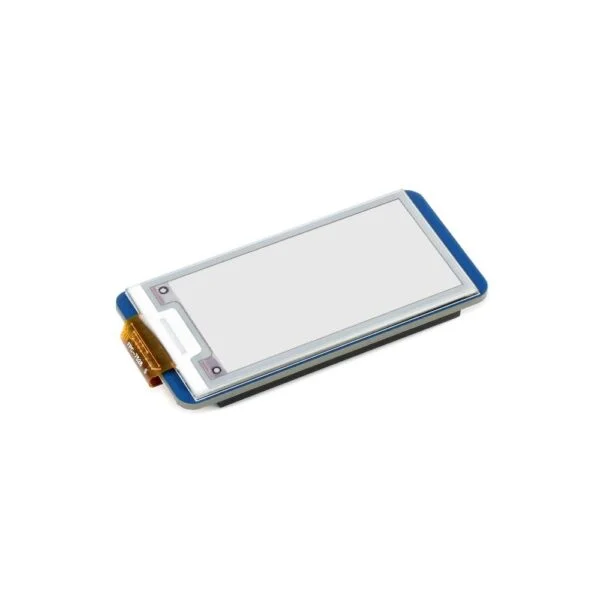

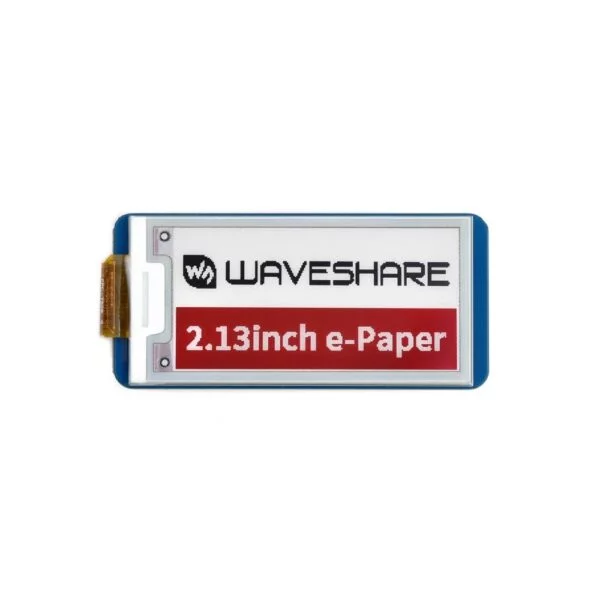

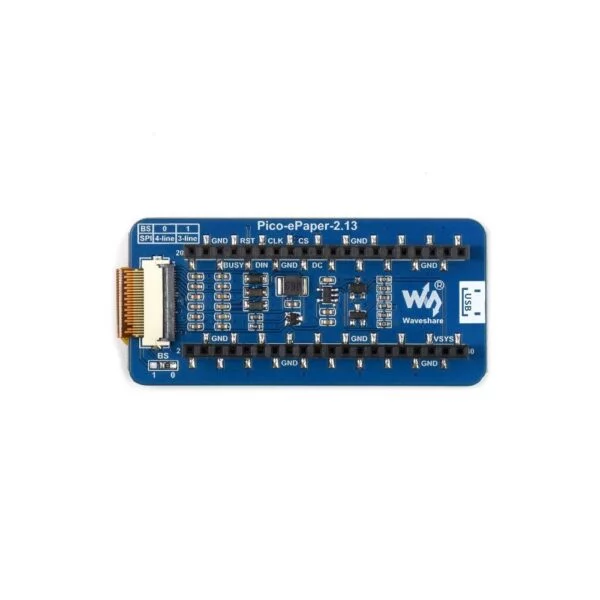

WAVESHARE 2.13inch E-Paper E-Ink Display Module (B) For Raspberry Pi Pico, 212×104, Red / Black / White, SPI
Original price was: ₹2100.00.₹1595.00Current price is: ₹1595.00.
E-Ink Display Specifications :
- OPERATING VOLTAGE : 3.3V
- DISPLAY COLOR : red, black, white
- INTERFACE : 3-wire SPI, 4-wire SPI
- GREY SCALE :2
- OUTLINE DIMENSIONS : 65.00 × 30.50 mm
- FULL REFRESH TIME : 15s
- DISPLAY SIZE : 48.55 × 23.71 mm
- REFRESH POWER : 26.4mW (typ.)
- DOT PITCH : 0.229 × 0.228 mm
- STANDBY CURRENT : <0.01uA (almost none)
- RESOLUTION : 212×104 pixels
- VIEWING ANGLE : >170°
E-Ink Display Features:
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, requires minimal IO pins
- Comes with development resources and manual (Raspberry Pi PICO C/C++ and MicroPython examples)
E-Ink Display Specifications :
- OPERATING VOLTAGE : 3.3V
- DISPLAY COLOR : red, black, white
- INTERFACE : 3-wire SPI, 4-wire SPI
- GREY SCALE :2
- OUTLINE DIMENSIONS : 65.00 × 30.50 mm
- FULL REFRESH TIME : 15s
- DISPLAY SIZE : 48.55 × 23.71 mm
- REFRESH POWER : 26.4mW (typ.)
- DOT PITCH : 0.229 × 0.228 mm
- STANDBY CURRENT : <0.01uA (almost none)
- RESOLUTION : 212×104 pixels
- VIEWING ANGLE : >170°
Package Included :
1 x WAVESHARE 2.13inch E-Paper E-Ink Display
