Waveshare 128×160, General 1.8inch LCD Display Module
Original price was: ₹825.00.₹701.00Current price is: ₹701.00.
LCD Display Specifications
- Driver: ST7735S
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 128×160
- Backlight: LED
- Operating voltage: 3.3V/5V

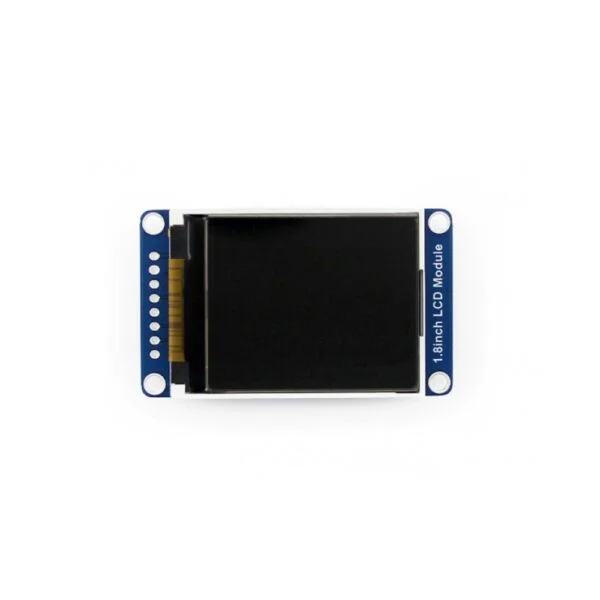

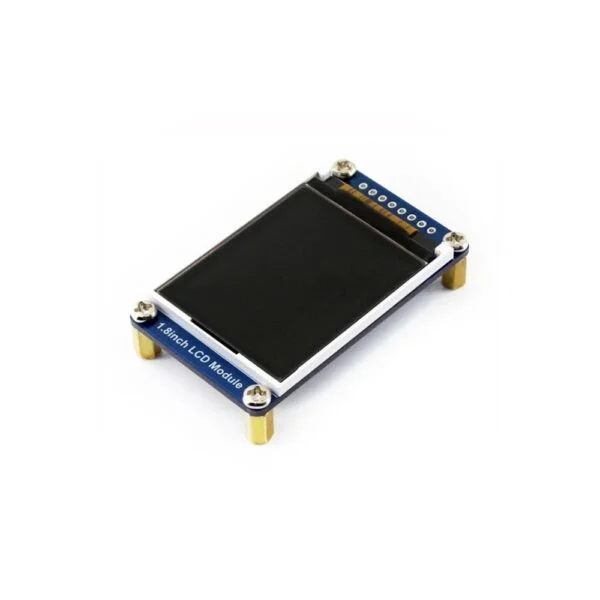

This is a general LCD display Module, 1.8inch diagonal, 128×160 pixels, with embedded controller, communicating via SPI interface.
LCD Display Features
- SPI interface, requires minimum GPIO for controlling
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
LCD Display Specifications
- Driver: ST7735S
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 128×160
- Backlight: LED
- Operating voltage: 3.3V/5V

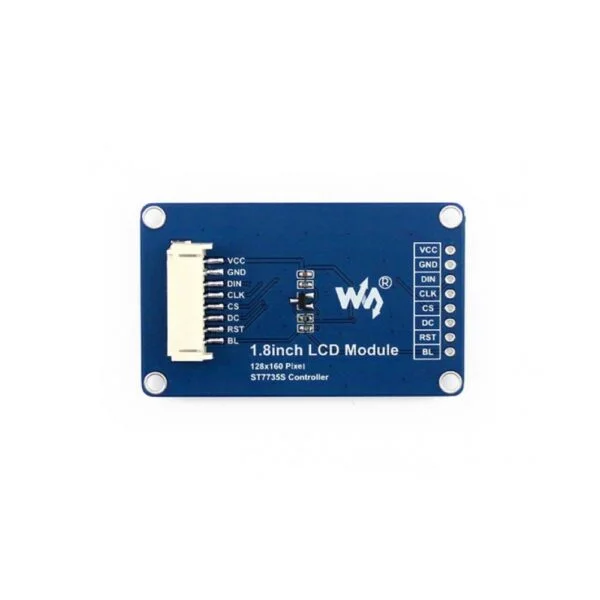

LCD Display Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Power (3.3V/5V input) |
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Package Included :
- 1.8inch LCD Module x1
- PH2.0 20cm 8Pin x1
