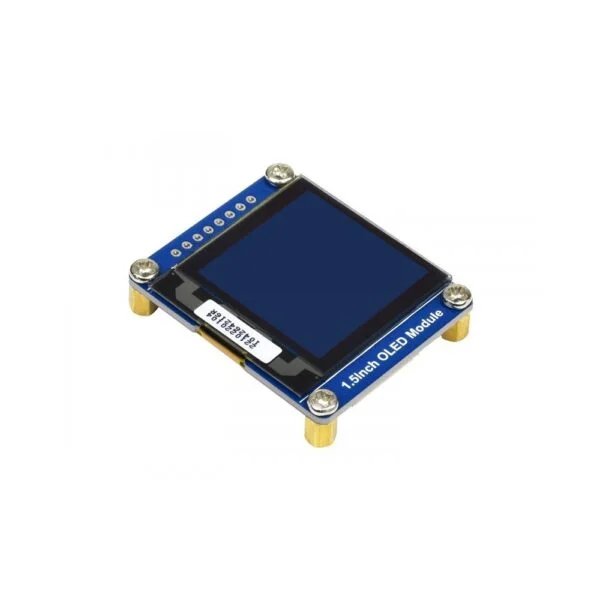

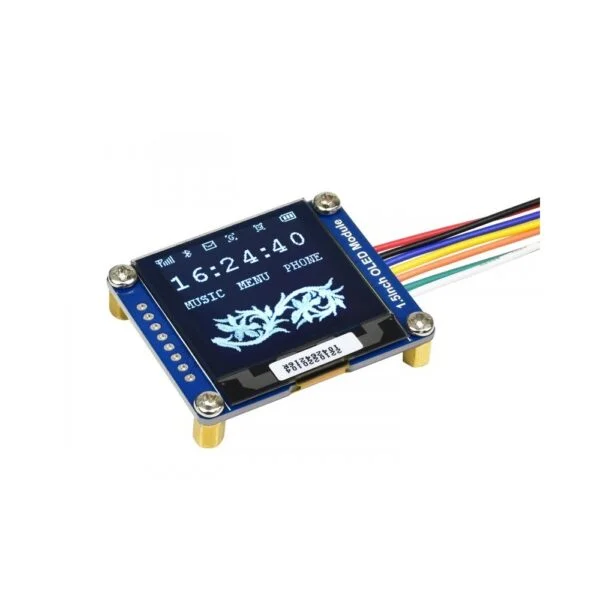

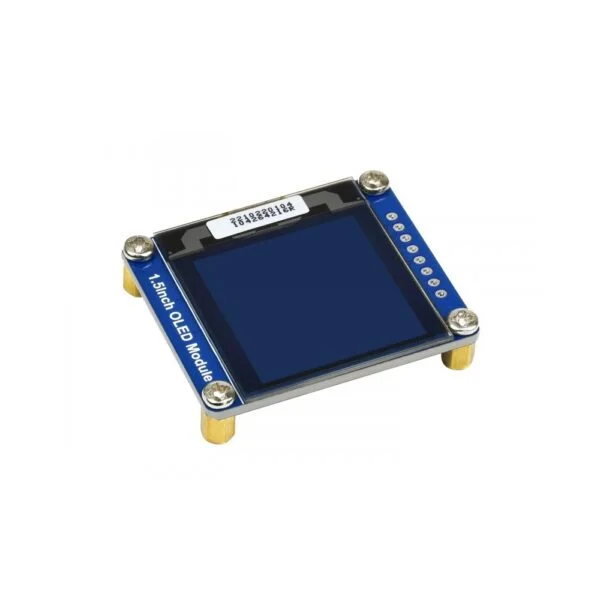

Waveshare 128×128, General 1.5inch OLED Display Module

This is a general 1.5inch diagonal OLED display Module from Waveshare, 128×128 pixels monochrome dot matrix display module with 16 grayscale, and an embedded controller communicating via SPI or I2C interface. It is perfect when you need an ultra-small display. Compared to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.

OLED Specification:

• Driver: SSD1327
• Display Size: 1.5 inch
• Display Color: White
• Pixel Resolution: 128 x 128
• Grayscale: 16
• Interface Type: I2C, SPI
• Viewing Angle: >160°
• Input Voltage: 3.3 to 5V

OLED Features:

• 128×128 high resolution.
• 16 grayscale, the better display effect.

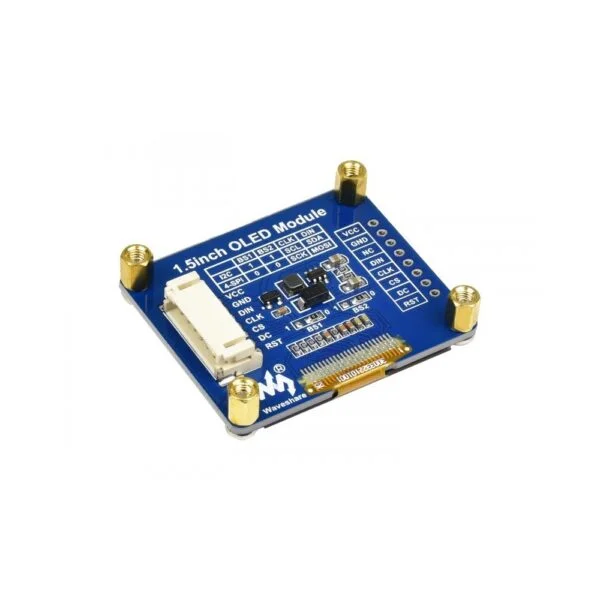

• Supports SPI or I2C interface, configured via an onboard resistor.
• Comes with development resources and a manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).

Package Included:

1 x Waveshare 128×128, General 1.5inch OLED Display Module
