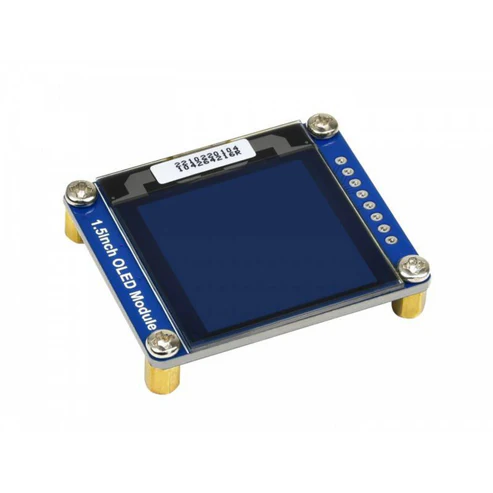

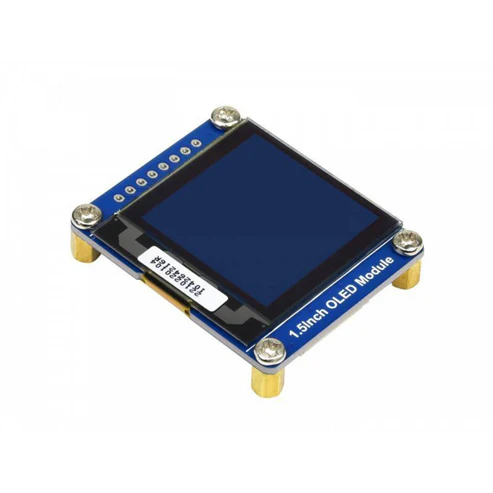

Waveshare 1.5″ OLED Display Module 1.5″ 128×128 Pixel OLED Display With 16 Gray Scales, And SPI/I2C Interface Compatible With Raspberry PI Perfect For Embedded Projects
₹1064.00Original price was: ₹1064.00.₹964.00Current price is: ₹964.00.
This is a general 1.5inch diagonal OLED display Module from Waveshare, 128×128 pixels monochrome dot matrix display module with 16 grayscales, and an embedded controller communicating via SPI or I2C interface. It is perfect when you need an ultra-small display.
This is a general 1.5inch diagonal OLED display Module from Waveshare, 128×128 pixels monochrome dot matrix display module with 16 grayscales, and an embedded controller communicating via SPI or I2C interface. It is perfect when you need an ultra-small display.
Compared to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
Specification:
Operating voltage
3.3V / 5V
DISPLAY PANEL
OLED
Resolution
128 × 128 pixels
PIXEL SIZE
0.185 × 0.185mm
Communication Interface
4-wire SPI / I2C
Driver
SSD1327
Features:
128×128 high resolution.
16 grayscale, the better display effect.
Supports SPI or I2C interface, configured via an onboard resistor.
Comes with development resources and a manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).

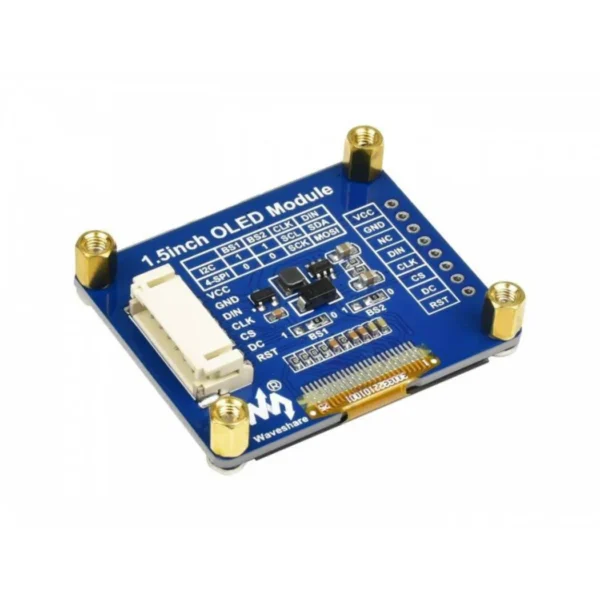

Pin Description:
VCC
Power (3.3V / 5V input)
GND
Ground
DIN
Data input
CLK
Clock input
CS
Chip selection, low active
DC
Data/Command selection (high for data, low for command)
