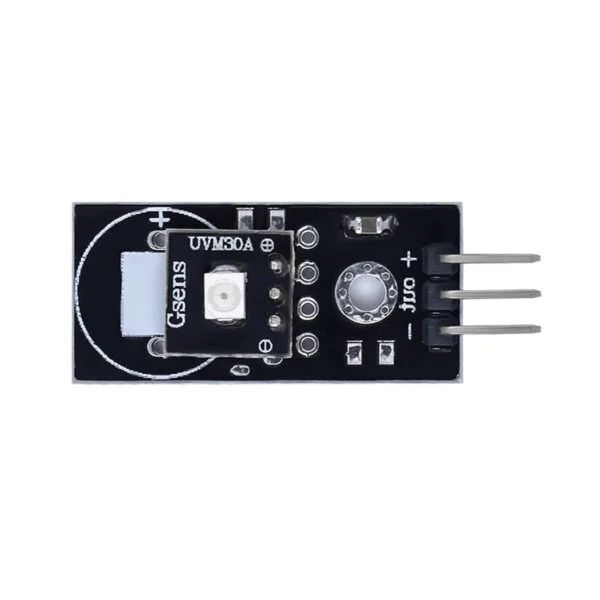

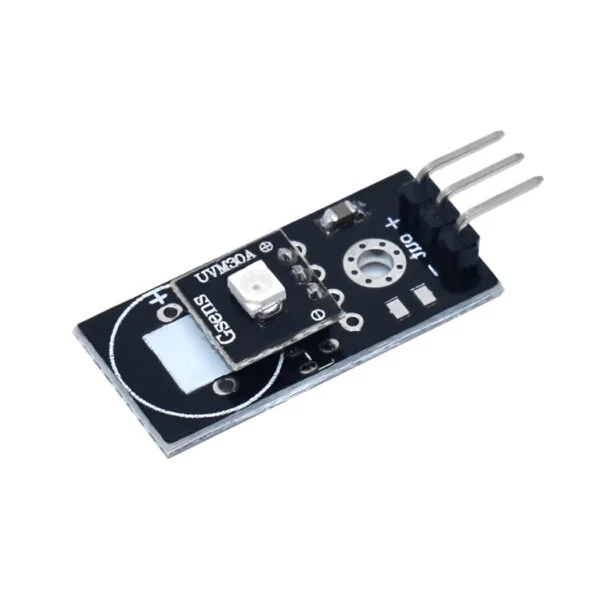

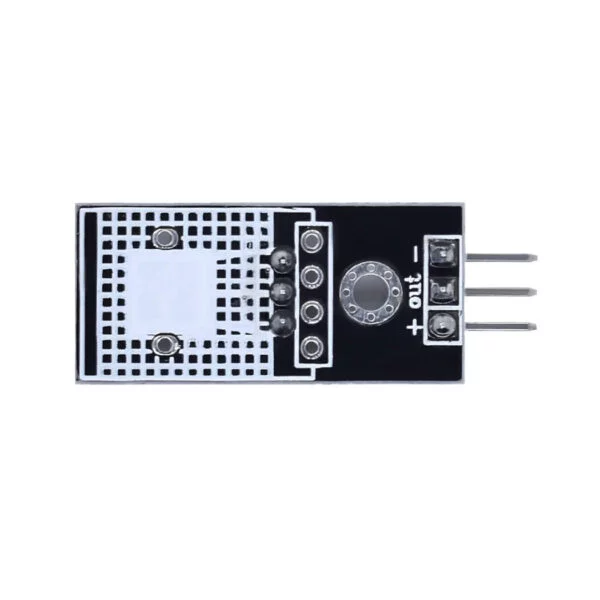

UVM-30A UV Sensor Detector Module for Arduino Development Board Ultraviolet Ray Detection Sensor Module

Description:

UVM-30A UV Sensor Detector Module A Suitable for measuring the total amount of sunlight UV intensity. It controls the grading standards of the World Health Organization UV Index. The UV Sensor is used for detecting the intensity of incident ultraviolet(UV) radiation. This form of electromagnetic radiation has shorter wavelengths than visible radiation. This module is based on the sensor UVM-30A, which has a wide spectral range of 200nm-370nm. The module outputs an electrical signal which vary with the UV intensity, which gives your suggestion if it is a good idea to beach today.

Specifications:

• Operating Voltage: DC 3-5V
• Output voltage: DC 0-1V
• Test accuracy: 1UV INDEX
• Current: 0.06mA(typ), 0.1mA(max).
• Response wavelength: 200nm-370nm
• Work temperature: -20?~85
• Detect UV wavelength:200-370nm

Features:

• Designed for applications requiring high reliability and precision measuring UV Index (UVI) designed for the occasion.
• Suitable for measuring the amount of UV intensity of sunlight.
• Control World Health Organization classification standard UV Index.
• Fast response, full interchangeability.
• Linear voltage signal output.
• Small size, suitable for mobile phones and other portable products.

Package Included:

1 x UVM-30A UV Sensor Detector Module for Arduino Development Board Ultraviolet Ray Detection Sensor Module
