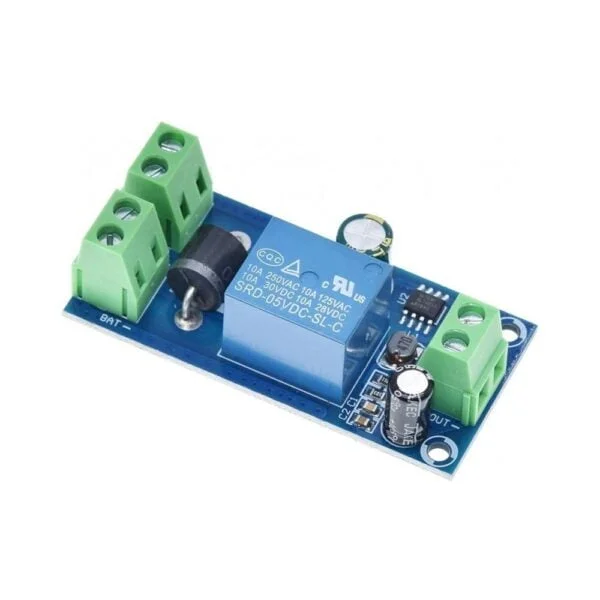

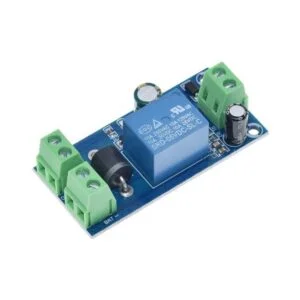

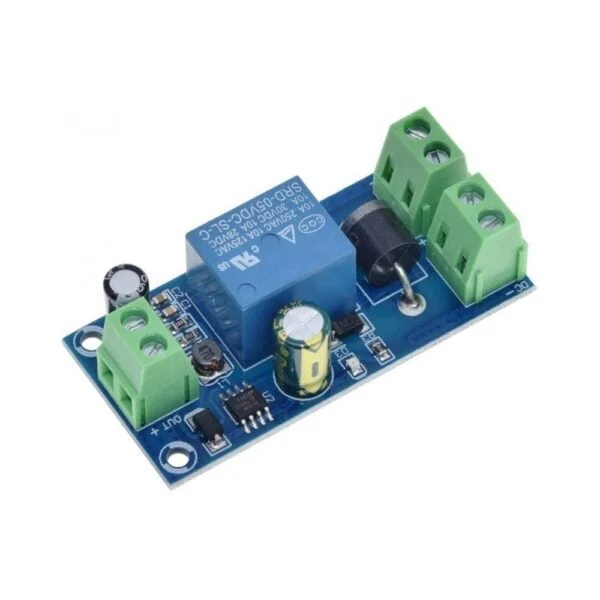

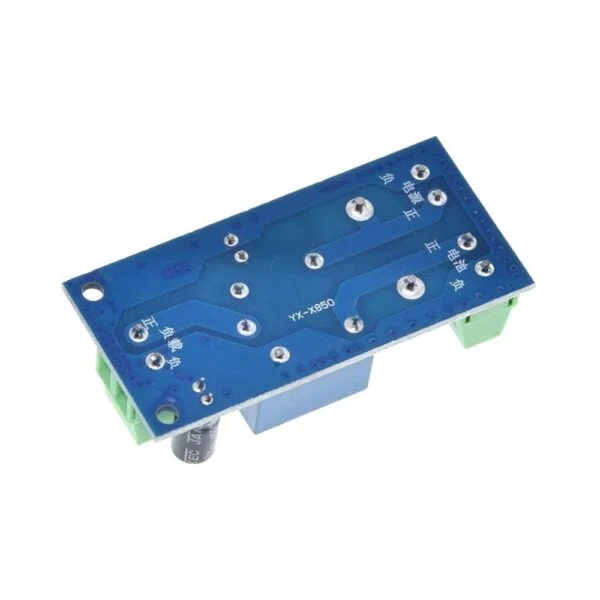

5V-48V YX850 Power Failure Standby Battery Automatic Switching Module

It is an automatic switching module. When the battery is dead or there is a problem with the battery, it is powered by the power supply. When there is input power at the power adapter, the battery can be charged.

Automatic Switching Features:

• Product load: 10A
• Product size: 61mm*29mm
• Automatically identify the voltage
• Automatically switch power
• Battery discharge protection

Automatic Switching Specification:

• Product Name: Automatic Switching Module
• Model: YX850
• Input Voltage: DC5V~48V
• Load Current:10A(MAX)
• Work Temperature:-25~85
• Work Humidity:5%~95%RH
• Size:61.5*30*19mm

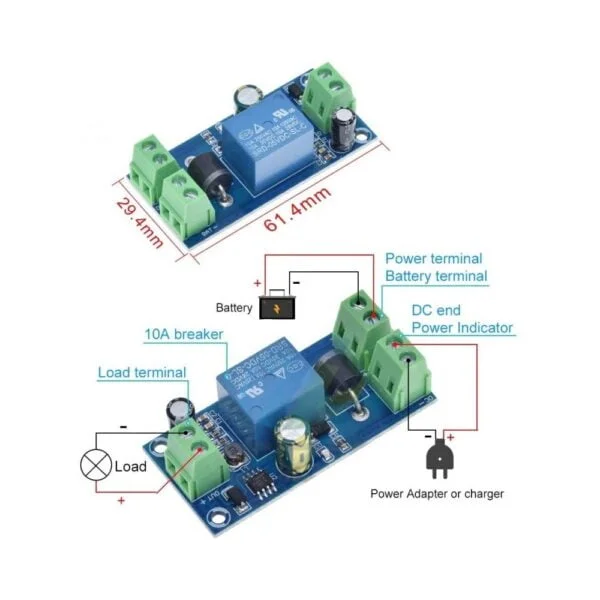

Note:

• When the DC terminal has input voltage,it is connected to the battery to charge the battery.
• When the DC terminal has input voltage,it will supply power to the load.
• When the DC terminal is not input voltage,the product will automatically switch to the load powered by a battery.
• The product will lose power for 0.7 seconds when switching power supply equipment.
• The DC, power and load voltages should be the same.

Package Includes:

1 x YX850 Power Failure Automatic Switching Standby Battery Module 5V-48V
