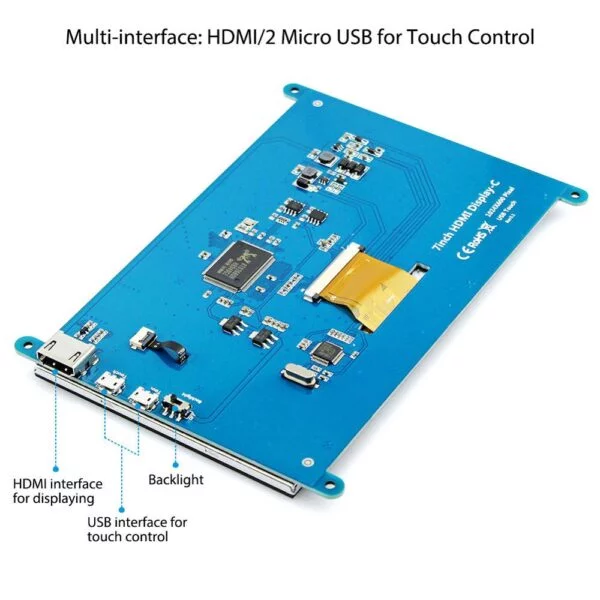

This is a 7 inch Raspberry Pi 3B+ LCD display touch screen LCD 1024*600 HDMI TFT monitor. It has USB interface capacitive touch , more convenient. It supports the back light control, saves the electricity. And also it supports the Raspberry Pi, provide Raspbian , Ubuntu , Win 10 system image in the CD. It is a general HDMI display , can be used as a computer monitor (touch function cannot be used). HDMI interface is used to display and USB interface is used to touch. This 7 inch touch screen module is designed especially for Raspberry Pi 3/2 /B+, support the portable power, convenient for DIY.
LCD display Specification:
Display size: 7 inch
Screen: Touch screen

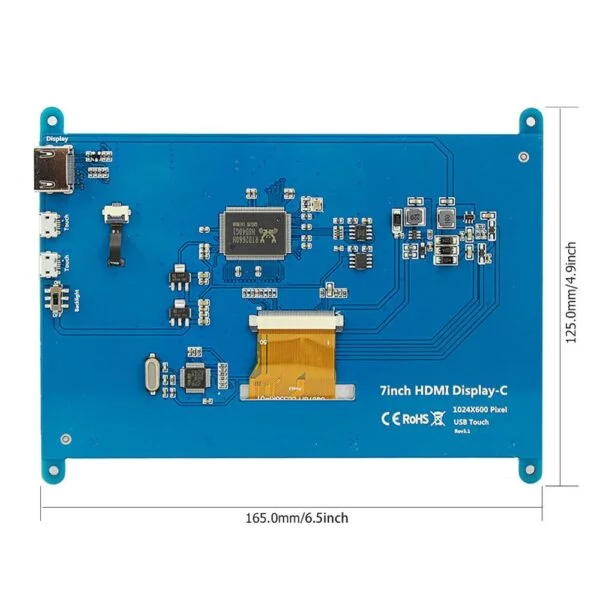

Dimensions: 165 (W) × 100 (H) × 5 (D) mm
Viewing area: 154.08 (H) × 85.92 (V)
Resolution: 1024 × 3 (RGB) × 600
Point distance: 0.05 (W) × 0.15 (H) mm
Viewing angle: L70 ° R70 ° U50 ° D60
Panel type: TFT
Display color: 262K
Contrast ratio: 500: 1
Brightness: 220cd / m2
Interface type: Digital
The number of connection: 50 PIN Digital (TTL) TCON
Back light: LED
Operating voltage: 5V (current requirement 1A-2A)
Rated power: 6-7W
Signal input: 2 AV + VGA + HDMI (HDMI 1.2)
LCD display Features:
1024 x 600 (Pixel), IPS screen; Full view

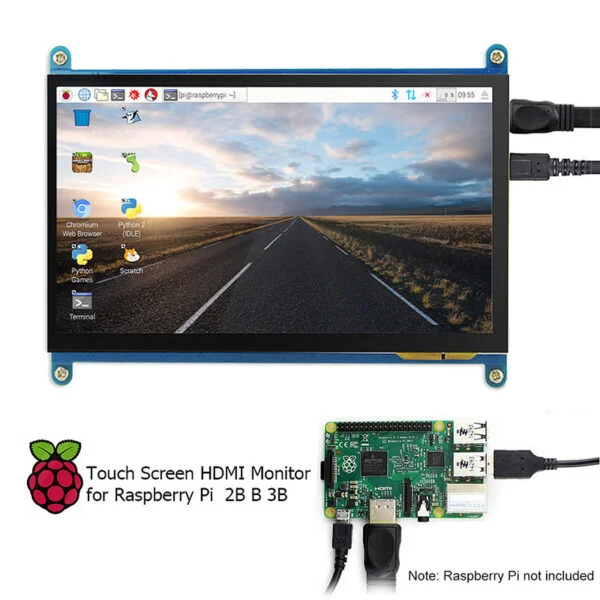

Compatible with Raspberry Pi 3 Model B/ 2B/ B+
For Raspberry Pi, you can run Raspbian and Ubuntu
Compatible with Beagle Bone Black and Banana Pi/Pro
USB touch and HDMI display don’t occupy any GPIO
Support win7/win8/win10, No driver
LCD display Application:
Mobile
Digital photo frame
Car systems
Multimedia applications
And other audiovisual systems
Package Included:
1 x 7 inch HDMI LCD Display
1 x HDMI Cable
1 x USB Cable
1 x CD
Mounting Screws
