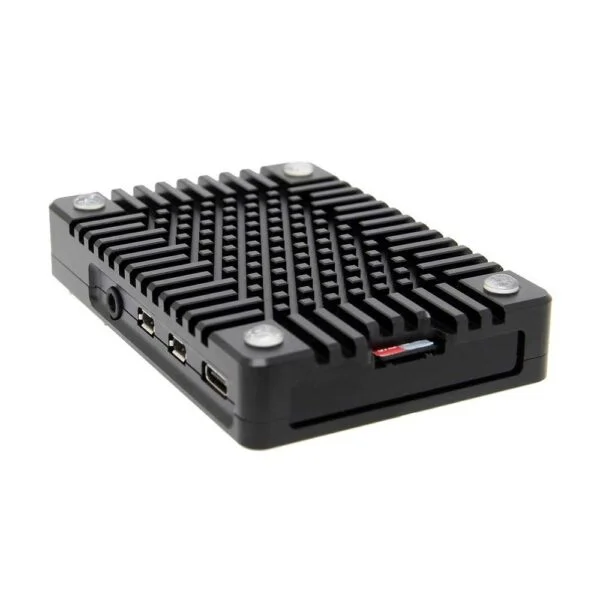

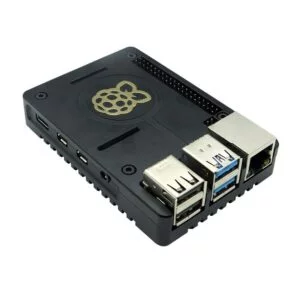

Raspberry Pi 4 Aluminum Alloy Metal Case Armor Enclosure

This Metal Case is a Raspberry Pi 4 aluminum case – ultra-thin aluminum alloy metal protective CNC Case that specially designed for Raspberry Pi 4 Model B, which compatible with Raspberry Pi 4 Model B 1GB/2GB/4GB/8GB Versions, use this Pi 4 case you can have easy access to all ports and slots of your Raspberry Pi 4B. At the bottom of this pi 4 b case there are regular bump design not flat for better heat dissipation. It is a good raspberry pi 4 passive cooling case. It is ultra thin and compatible for 3.5 inch GPIO connection touch LCD. The case use passive cooling to prevent overheating of Raspberry Pi.

Metal Case Specification:

• Material: Aluminum Alloy
• Color: Black
• Compatible With: Raspberry Pi 4/ Pi 4B

Metal Case Features:

• Whole aluminum alloy CNC processing, sand blasting, anodizing.
• Ultra-thin with ONLY 16mm thickness.
• Compatible 3.5 inch LCD

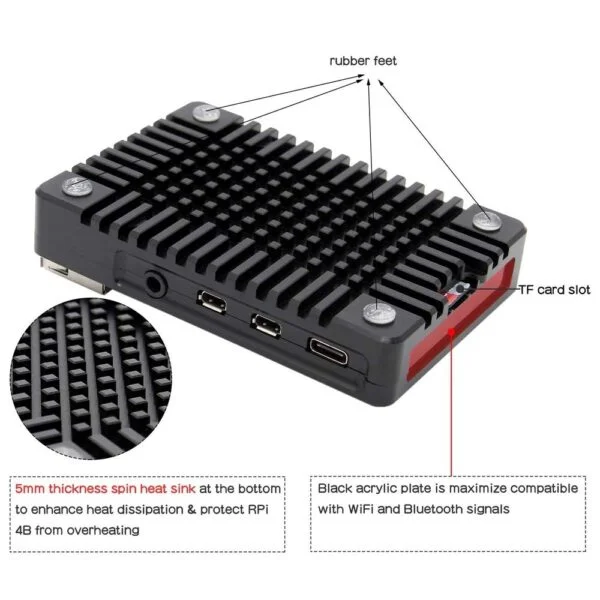

• Add 5mm thick heat sink at the bottom to enhance the case heat dissipation and protect Raspberry Pi 4B from overheating.
• With black acrylic translucent plate to maximize compatibility with WiFi and Bluetooth signals, almost no weakness.
• The Pi 4B indicators is visible after installation.

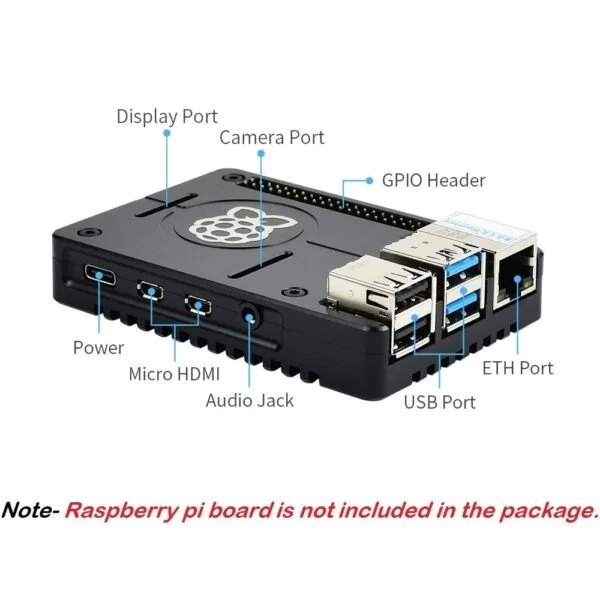

• Access to all ports of Raspberry Pi 4 Model B.
• Prepared with 4 rubber feels to stable the case and not easy to scratch.
• The Raspberry Pi 4B GPIO pin is available for other application.
• Please remove double-sided protective films of thin thermal pad and place them on position of the CPU/RAM chip.
• The thick thermal pad should be place at the bottom cover for thermal conduction.

Package Included:

• 1 x CNC Aluminum Case
• 2 x Thermal Tapes
• 1 x Acrylic Side Panel
• 2 x Logo Sticker
• 4 x Rubber Feet
• 8 x Copper Standoff
• 4 x Black Screw
• 1 x Allen Key
