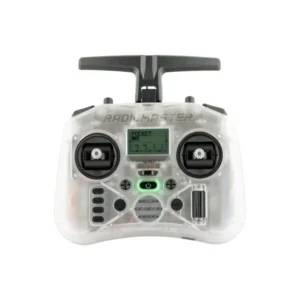

RadioMaster Pocket ELRS RC Transmitter Mini FPV Transmitter With Hall Gimbals – Transparent

Description:

The RadioMaster Pocket is a small, lightweight radio that packs a big punch. It is available in two versions, ExpressLRS and MPM CC2500, and both versions come preinstalled with EdgeTX firmware. The Pocket is also equipped with removable stick ends and a foldable antenna, making it easy to transport and store. It is compatible with 18650 batteries, which provide long battery life for hours of fun.

Specifications:

• Item: Pocket Radio
• Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）
• Weight: 288 grams
• Operating frequency: 2.400GHz-2.480GHz
• Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
• Supported protocols: Module dependent
• Operational voltage: 6.6-8.4v DC
• Operating system: EdgeTX
• Control channels: Maximum 16 (Receiver dependent)
• Display: 128*64 Monochrome LCD
• Battery: 2pcs 18650 batteries (Not included)
• Charging: Built in USB-C QC3 Charging
• Upgradable Firmware: Via USB or the included SD card
• Gimbal: Hall-effect
• Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )

Features:

• Available in ExpressLRS Backpack and MPM CC2500 versions
• Preinstalled with EdgeTX firmware
• 18650 Batteries, all the power you need for hours of fun (Batteries not included)
• Portable and lightweight design with removable stick ends and foldable antenna
• Features hall effect gimbals as standard for smooth centering & precise response
• Built-in LED lights help visualize your switch positions (SA & SD)
• Backlit LCD Screen offering a perfect balance of size and functionality
• Trim buttons for easy channel trimming
• External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer
• 2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style.

Gimbal Adjustment

A L-R
To switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).
B T
To adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
C UP-DOWN
Turn clockwise to increase vertical stick tension.
Turn counterclockwise to decrease stick tension.
D LEFT-RIGHT
Turn clockwise to increase horizontal stick tension.
Turn counterclockwise to decrease stick tension.

Product Interface:

Useful Link:

User Manual

Package Included:

• 1 x Pocket Radio
• 1 x Custom Carry Pouch
• 1 x USB-C Cable
• 1 x Screen Protector
• 1 x Sticker
• 4 x Low Tension Springs
• 1 x Manual
