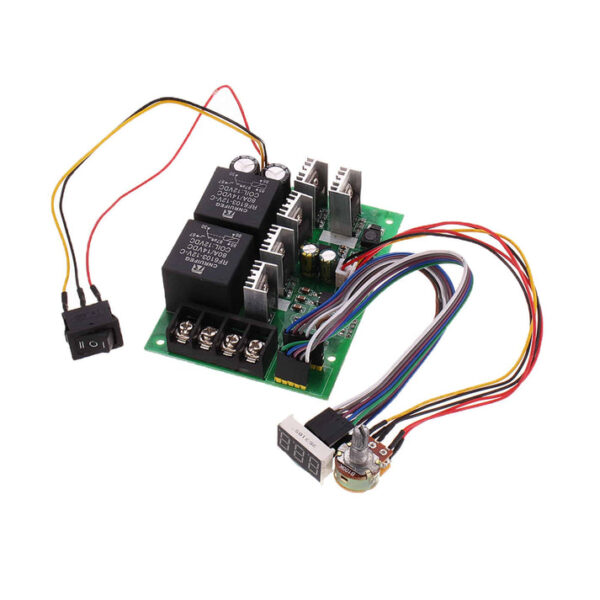

PWM DC Motor Controller PWM DC Motor Governor 10V-55V 12V 24V 36V 48V 40A Motor Speed Control Module Controller with Display

Description:

This is a simple and easy-to-use PWM DC Motor Controller with an elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 55V. This PWM DC Motor Controller with high power allows setting rotation direction.

Specifications:

• Input Voltage: DC 10V-55V
• Output Voltage: Linear with load
• Max. Current: 60A
• Continuous Current: 40A
• Speed Range: 0% to 100%
• Forward Reverse: Support
• Regulation Method: Potentiometer (Linear)
• Regulation Type: Regulating Current
• Control Frequency: 15KHz
• Wiring Type: Screw Terminal
• Rotary Knob: 100K (With switch)

Features:

• PWM DC Motor Controller is also suitable for brushed DC motor.
• Designed with a digital display that shows the rate in per cent of actual speed to maximum speed.

Package Included:

1 x PWM DC Motor Controller PWM DC Motor Governor 10V-55V 12V 24V 36V 48V 40A Motor Speed Control Module Controller with Display
