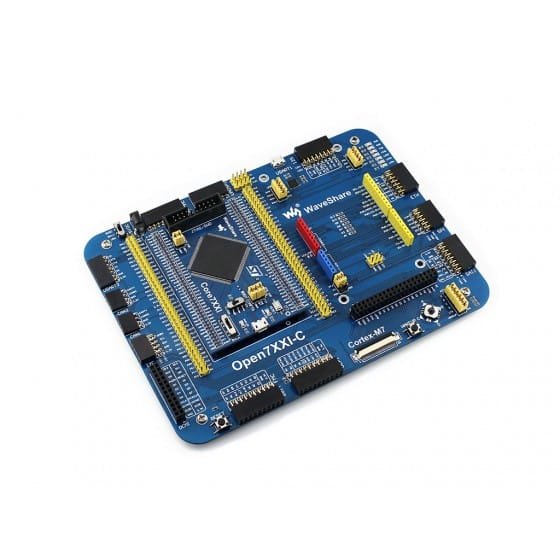

Open746I-C Standard, STM32F7 Development Board

Description:

STM32 development board designed for STM32F746I, features the STM32F746IGT6 MCU, and integrates various standard interfaces, pretty easy for peripheral expansionsOpen746I-C is an STM32 development board designed for the STM32F746IGT6 microcontroller, consists of the mother board and the MCU core board Core746I.The Open746I-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32 series microcontrollers.

Specification:

• MCU core board connector: for easily connecting the Core746I
• Arduino interface: for connecting Arduino shields
• DCMI interface: for connecting camera
• 8-bit FMC interface: easily connects to peripherals such as NandFlash
• ULPI interface: for connecting high-speed USB peripheral (the STM32F746I integrates USB HS controller without any PHY device)
• LCD interface 1: for connecting 10.1inch LCD, 7inch LCD
• LCD interface 2: for connecting 4.3inch LCD
• SAI1 interface: for connecting audio modules
• ICSP interface: Arduino ICSP

Features:

• SPI1/SPI2 interfaces:
  • easily connects to SPI peripherals such as DataFlash (AT45DBxx, W25QXX), SD card, MP3 module, etc.
  • easily connects to AD/DA modules (SPI1 features AD/DA alternative function)
• Ethernet interface: for connecting Ethernet modules
• I2S2/I2S3/I2C1 interface: easily connects to I2S peripherals such as audio module, etc.
• USART1 connector: USB to UASRT via the onboard convertor CP2102
• QUADSPI interface: 4-wires SPI interface (the F7 series latest peripheral interface), for connecting serial Flash modules like W25QXX Board
• SDMMC interface: for connecting Micro SD module, features much faster access speed rather than SPI
• USART3 interface: easily connects to RS232, RS485, USB TO 232, etc.
• CAN2 interface: for connecting CAN modules
• CAN1 interface: for connecting CAN modules
• I2C1/I2C4 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), EEPROM (AT24Cxx), 10 DOF IMU Sensor, etc.
• MCU pins connector: all the MCU I/O ports are accessible on expansion connectors for further expansion
• 5V DC jack
• 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
• Power supply switch: powered from 5VDC OR USB connection of the USART1
• CP2102: USB to UART convertor
• LEDs: convenient for indicating I/O status and/or program running state
• Joystick: five positions
• WAKE UP button: used as regular button, and/or wake up the STM32 MCU from sleep
• Reset button
• USART1 jumper
• LED jumper
  • short the jumper to connect to default I/Os used in example code
  • open the jumper to connect to custom I/Os via jumper wires
• KEY jumper
  • short the jumper to connect to default I/Os used in example code
  • open the jumper to connect to custom I/Os via jumper wires
• Arduino jumper
  • short the upper pins, A4, A5 is used as AD function
  • short the lower pins, A4, A5 is used as I2C function

Package Included:

1 x Open746I-C Standard, STM32F7 Development Board
