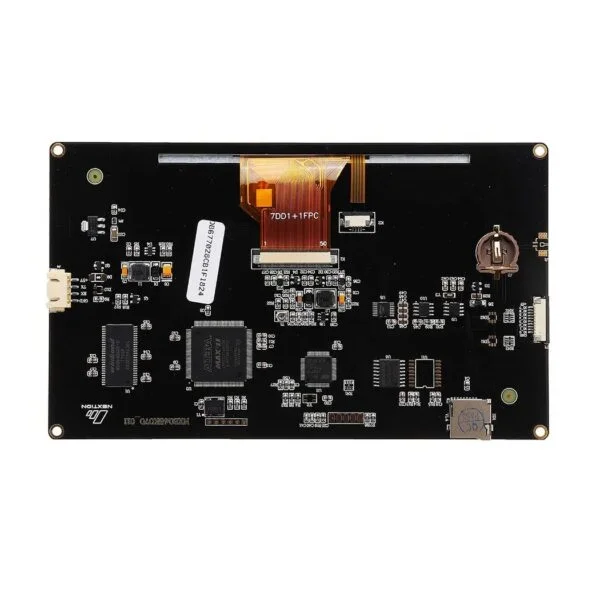

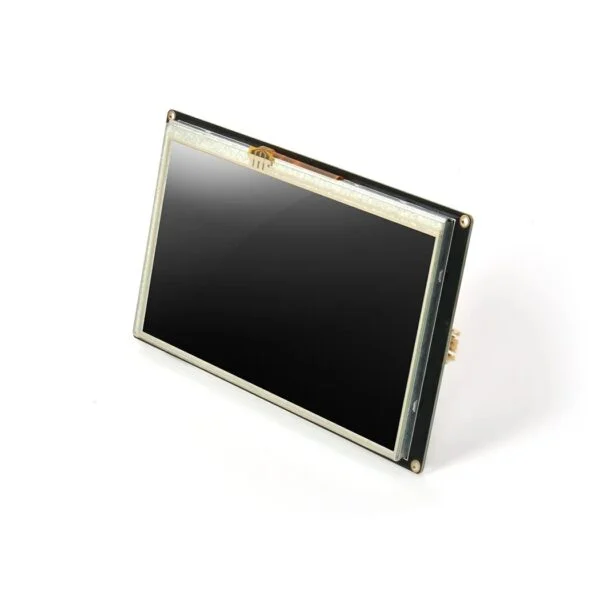

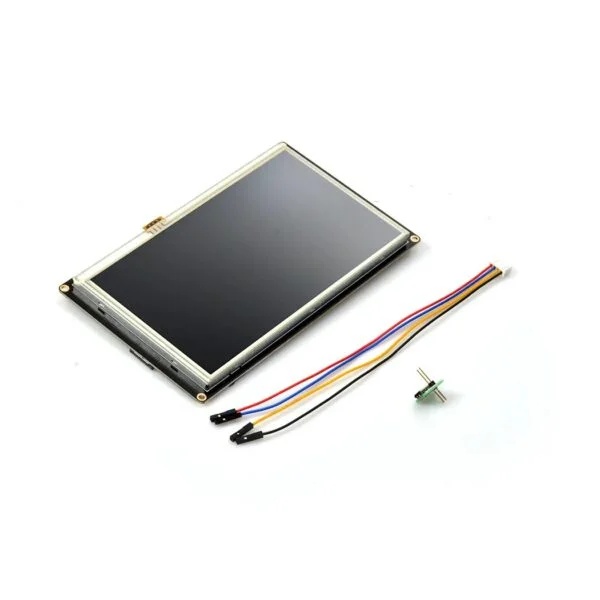

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software (Official Download), users are able to create and design their own interfaces for Nextion display.
The Nextion Enhanced series is more powerful compared to the Nextion Basic series. In addition to a faster MCU clock, the Enhanced series supports built-in RTC, 1K EEPROM for user data, 8 digital GPIO, larger Flash capacity, and more RAM (for models 3.5″ and higher).
Specifications
Data
Description
Colour
64K 65536 colours
16 bit 565, 5R-6G-5B
Layout size
181(L)×108(W)×7.7(H)
NX8048K070_011N
181(L)×108(W)×9.3(H)
NX8048K070
181(L)×108(W)×9.3(H)
NX8048K070_011R
181(L)×108(W)×9.3(H)
NX8048K070_011C
Active Area (A.A.)
164.90mm(L)×100.00mm(W)
Visual Area (V.A.)
154.08mm(L)×85.92mm(W)
Resolution
800×480 pixel
Also can be set as 480×800
Touch type
Resistive
Touches
> 1 million
Backlight
LED
Backlight lifetime (Average)
>30,000 Hours
Brightness
250nit (NX8048K070_011N)
0% to 100%, the interval of adjustment is 1%
230 nit (NX8048K070_011R)
0% to 100%, the interval of adjustment is 1%
Weight
216g (NX8048K070_011N)
268g (NX8048K070)
598g (NX8048K070_011R)
598g (NX8048K070_011C)
Electronic Characteristics-
Test Conditions
Min
Typical
Max
Unit
Operating Voltage
4.75
5
7
V
Operating Current
VCC=+5V, Brightness is 100%
–
510
–
mA
SLEEP Mode
–
15
–
mA
Power supply recommend：5V, 2.0A, DC
Working Environment & Reliability Parameter-
Test Conditions
Min
Typical
Max
Unit
Working Temperature
5V, Humidity 60%
-20
25
70
°C
Storage Temperature
-30
25
85
°C
Working Humidity
25°C
10%
60%
90%
RH
Interfaces Performance-
Test Conditions
Min
Typical
Max
Unit
Serial Port Baudrate
Standard
2400
9600
115200
bps
Output High Voltage
IOH=-1mA
3.0
3.2
V
Output Low Voltage
IOL=1mA
0.1
0.2
V
Input High Voltage
2.0
3.3
5.0
V
Input Low Voltage
-0.7
0.0
1.3
V
Serial Port Mode
TTL
Serial Port
4Pin_2.54mm
USB interface
NO
SD card socket
Yes (FAT32 format), support maximum 32G Micro SD Card
* microSD card socket is exclusively used to upgrade Nextion firmware /HMI design
Extended IO
8 Digital extended GPIO
IO0-IO7 support input, output and component binding event
* IO pin/ports are not exclusive, limit current draw to 1mA recommended
IO4-IO7 support PWM
RTC
Built-in RTC support (Battery type: CR1220)
Memory Features-
Memory Type
Test Conditions
Min
Typical
Max
Unit
FLASH Memory
Store fonts and images
32
MB
User Storage
EEPROM
1024
BYTE
RAM Memory
Store variables
8192
BYTE
Instruction Buffer
Instruction Buffer
1024
BYTE
Features
Unveiling Enhanced Visuals-
Embark on a journey of enhanced visual experiences with the NX8048K070 Nextion Enhanced 7-Inch Display. Immerse yourself in stunning graphics, vivid colours, and crystal-clear clarity that bring your content to life. With impressive resolution and precision engineering, every image and detail is portrayed with remarkable accuracy. Whether you’re crafting intricate designs or showcasing real-time data, this display ensures an immersive visual journey.
Seamless Integration, Ultimate Control-
Elevate your projects with the seamless integration and ultimate control offered by the NX8048K070 Enhanced Display. Its sleek design and advanced touch technology make it a versatile addition to various applications. Effortlessly create interactive user interfaces, design intuitive controls, and provide engaging experiences for your audience. With this display, user interaction becomes a captivating art form.
Empowerment at Your Fingertips-
Empower yourself to innovate, create, and captivate with the NX8048K070 7-Inch Enhanced Display. This display serves as a canvas for your imagination, allowing you to build interactive user experiences that leave a lasting impact. Craft responsive touch controls, design dynamic visuals, and present your ideas in ways that resonate. The power to inspire and engage is now at your fingertips.
