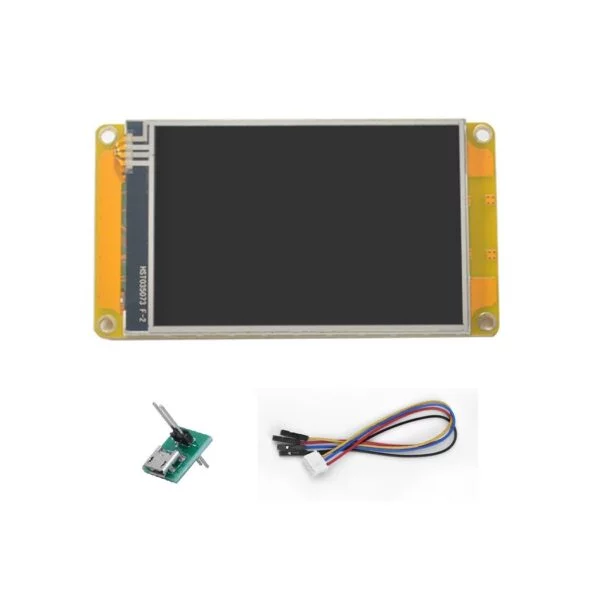

NX4832F035 Nextion Discovery 3.5 Inch Display is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider, etc.) and ASCII text-based instructions for coding how components interact on the display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that the peripheral MCU can act on, The peripheral MCU can easily update progress, and status back to Nextion display utilizing simple ASCII text-based instructions. Compared with the Basic Series, the Discovery Series has a better MCU performance, the same functionalities as the Basic, and a Lower Price. That’s Nextion Discovery Series Products.
Specifications
Data
Description
Colour
64K 65536 colours
16 bit 565, 5R-6G-5B
Layout size
100.5(L)×54.94(W)×5.55(H)
NX4832F035
Visual Area (V.A.)
73.44mm(L)×48.96mm(W)
Resolution
480×320 pixel
Also can be set as 320×480
Touch type
Resistive
Touches
> 1 million
Backlight
LED
Backlight lifetime (Average)
>30,000 Hours
Brightness
300nit
0% to 100%, the interval of adjustment is 1%
Weight
30.3g
Electronic Characteristics-
Test Conditions
Min
Typical
Max
Unit
Operating Voltage
4.5
5.0
6.0
V
Operating Current
VCC=+5V, Brightness is 100%
–
120
–
mA
Normal SLEEP Mode (lowpower=0)
–
4.5
–
mA
Deep SLEEP Mode (lowpower=1)
–
0.25
–
mA
1. Power supply recommend：5V, 500mA, DC.
2. In deep sleep mode, the wake-up time will be longer, and the data will be probably lost when the serial port receives the wake-up command. Therefore, it is recommended to send a void command and delay 50ms before operating.
Working Environment & Reliability Parameter-
Test Conditions
Min
Typical
Max
Unit
Working Temperature
5V, Humidity 60%
-20
25
70
°C
Storage Temperature
-30
25
80
°C
Working Humidity
25°C
10%
60%
90%
RH
Interfaces Performance-
Test Conditions
Min
Typical
Max
Unit
Serial Port Baudrate
Standard
2400
9600
115200
bps
Output High Voltage
IOH=-1mA
3.0
3.2
V
Output Low Voltage
IOL=1mA
0.1
0.2
V
Input High Voltage
2.0
3.3
5.0
V
Input Low Voltage
-0.7
0.0
1.3
V
Serial Port Mode
3.3V/5.0V TTL
Serial Port
4Pin_2.54mm
USB interface
NO
SD card socket
Yes (FAT32 format), support maximum 32G Micro SD Card
* microSD card socket is exclusively used to upgrade Nextion firmware /HMI design
Memory Features-
Memory Type
Test Conditions
Min
Typical
Max
Unit
FLASH Memory
Store fonts and images
16
MB
RAM Memory
Store variables
3584
BYTE
Instruction Buffer
1024
BYTE
Features
Unleash Your Imagination-
Embark on a journey of boundless creativity with the NX4832F035 Nextion Discovery 3.5-inch Display. Dive into a world of endless possibilities as you craft interactive user interfaces, dynamic visuals, and engaging touch controls. This compact yet powerful display is your canvas, enabling you to bring your ideas to life with ease. Whether you’re a designer, maker, or hobbyist, the NX4832F035 empowers you to create experiences that captivate and inspire.
Visual Excellence Redefined-
Experience visual excellence like never before with this Nextion Discovery Display. Immerse yourself in stunning graphics, vivid colors, and crystal-clear clarity that elevate your content to new heights. With impressive resolution and precision engineering, every detail is presented with remarkable accuracy. Whether you’re designing intricate graphics or showcasing real-time data, this display ensures an immersive and visually stunning experience.
Seamlessly Integrate, Effortlessly Control-
Elevate your projects with the seamless integration and effortless control offered by the NX4832F035 Discovery Display. Its sleek design and advanced touch technology make it a versatile addition to various applications. Effortlessly create interactive user interfaces, design intuitive controls, and provide engaging experiences for your audience. With this display, user interaction becomes a captivating art form, and your projects come to life in new and exciting ways.
