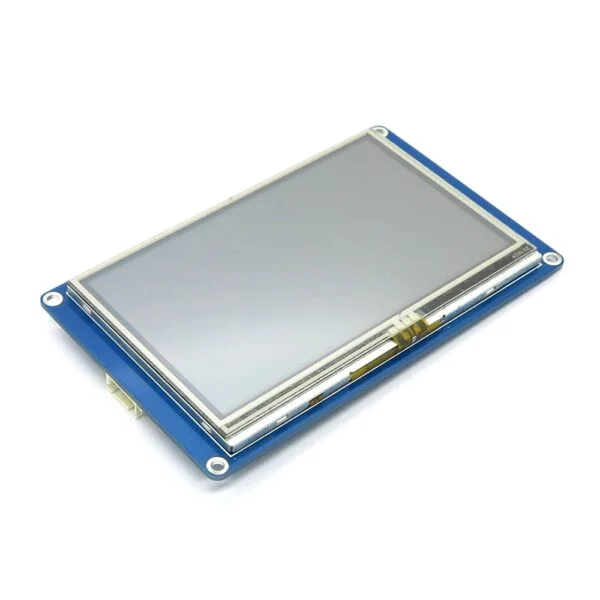

Nextion NX8048T070 7 Inch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software (Official Download), users are able to create and design their own interfaces for the Nextion display.
Nextion 7.0” HMI TFT Screen Intelligent Display Module with integrated 4-wire Resistive Touch Panel For Arduino DIY NX8048T070 800×480 is a powerful 7.0” HMI, which is a member of the Nextion family. Features include a 7.0″ TFT 800×480 resistive touchscreen display, 16M Flash, 2KByte RAM, and 65k colors.
Specifications
Data
Description
Colour
64K 65536 colours
16 bit 565, 5R-6G-5B
Layout size
181(L)×108(W)×7.3(H)
NX8048T070_011N
181(L)×108(W)×9(H)
NX8048T070_011R
Active Area (A.A.)
164.9mm(L)×100mm(W)
Visual Area (V.A.)
154.08mm(L)×85.92mm(W)
Resolution
800×480 pixel
Also can be set as 480×800
Touch type
Resistive
Touches
> 1 million
Backlight
LED
Backlight lifetime (Average)
>30,000 Hours
Brightness
250nit (NX8048T070_011N)
0% to 100%, the interval of adjustment is 1%
230 nit (NX8048T070_011R)
0% to 100%, the interval of adjustment is 1%
Weight
216g (NX8048T070_011N)
268g (NX8048T070_011R)
Electronic Characteristics-
Test Conditions
Min
Typical
Max
Unit
Operating Voltage
4.75
5
7
V
Operating Current
VCC=+5V, Brightness is 100%
–
510
–
mA
SLEEP Mode
–
15
–
mA
Power supply recommend：5V, 2A, DC
Working Environment & Reliability Parameter-
Test Conditions
Min
Typical
Max
Unit
Working Temperature
5V, Humidity 60%
-20
25
70
°C
Storage Temperature
-30
25
85
°C
Working Humidity
25°C
10%
60%
90%
RH
Interfaces Performance-
Test Conditions
Min
Typical
Max
Unit
Serial Port Baudrate
Standard
2400
9600
115200
bps
Output High Voltage
IOH=-1mA
3.0
3.2
V
Output Low Voltage
IOL=1mA
0.1
0.2
V
Input High Voltage
2.0
3.3
5.0
V
Input Low Voltage
-0.7
0.0
1.3
V
Serial Port Mode
TTL
Serial Port
4Pin_2.54mm
USB interface
NO
SD card socket
Yes (FAT32 format), support maximum 32G Micro SD Card
* microSD card socket is exclusively used to upgrade Nextion firmware /HMI design
Memory Features-
Memory Type
Test Conditions
Min
Typical
Max
Unit
FLASH Memory
Store fonts and images
16
MB
RAM Memory
Store variables
3584
BYTE
Features
Immerse Yourself in Stunning Visuals-
Unleash the power of vivid visuals with the NX8048T070 7-inch display. Whether you’re a creative professional seeking a canvas for your designs or a tech enthusiast craving an immersive multimedia experience, this display will captivate your senses. With its high-resolution screen and vibrant colour reproduction, every image and video comes to life in exquisite detail. Dive into your favourite movies, games, and digital creations like never before.
Seamless Touch Interaction-
Experience a new level of interactivity with the responsive touch technology of the NX8048T070 display. From intuitive gestures to precise taps, this touchscreen display effortlessly translates your commands into action. Whether you’re navigating complex interfaces or sketching out your ideas, the touch functionality adds a whole new dimension to your interaction with digital content.
Your Window to Productivity-
Boost your productivity with the versatile NX8048T070 7-inch display. Imagine having an extra screen for real estate to streamline your workflow. From extending your laptop’s display to multitasking between applications, this display enhances your efficiency. Stay organized, edit documents with ease, and keep an eye on your social feeds simultaneously. It’s like having a powerful command centre at your fingertips.
Package Included

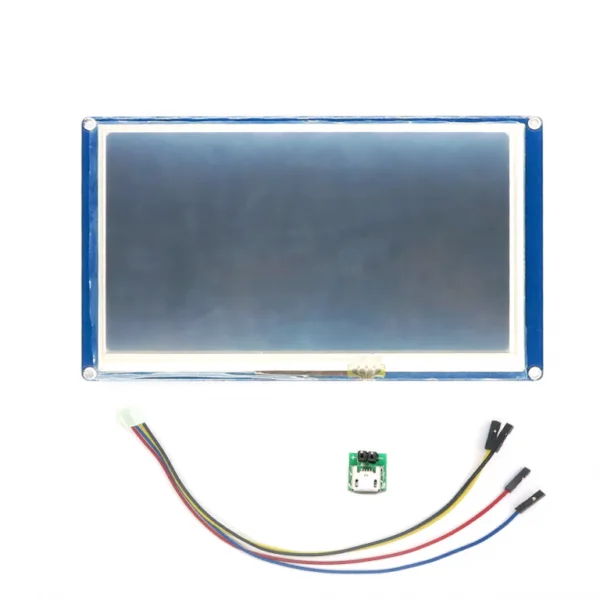

1 x NX8048T070 Nextion 7.0 Inch Display 1 x Connecting Cable 1 x Power Supply Test Board
