MY1016 24V 350W High Speed Motor Ebike Kit

This is MY1016 350W eBike Motor with Electric Bicycle Combo Kit which has all assembly products you need to build your E-Bike. It is an Electric Bicycle Permanent Magnet DC Motor. MY1016  24-volt 350-watt output for electric scooter and bike motor.  This MY1016 is a popular reduction motor, simply the most commonly used motor for Scooters, Bikes and quad’s available in the market! It is normally found in the better quality quads and scooters on the market and is classed as a mid-range combination.

Now here it comes combo with all necessary items to build your brand new eBike and to save your efforts in looking out for all compatible products and you can get it in just one go at a reasonable cost.

My1016  Motor is quite powerful with its small size and extremely reliable with its power requirements. We’ve sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go.

Ebike Kit Specification:

• Motor Model: MY1016
• Rated Operating Voltage: 24V DC
• Rated speed (RPM): 2650
• Rated Current: 13.7A
• Current without load: 0.7 – 1.4 A
• Rated Torque: 0.87 Nm
• Rated Output Power: 350W
• Transmission: chain sprocket (11 teeth, pitch 1/4″=6,35 mm), Exchangeable
• Fixation Nut Shaft Diameter: 10 mm (milled groove one-sided 1,5 mm)

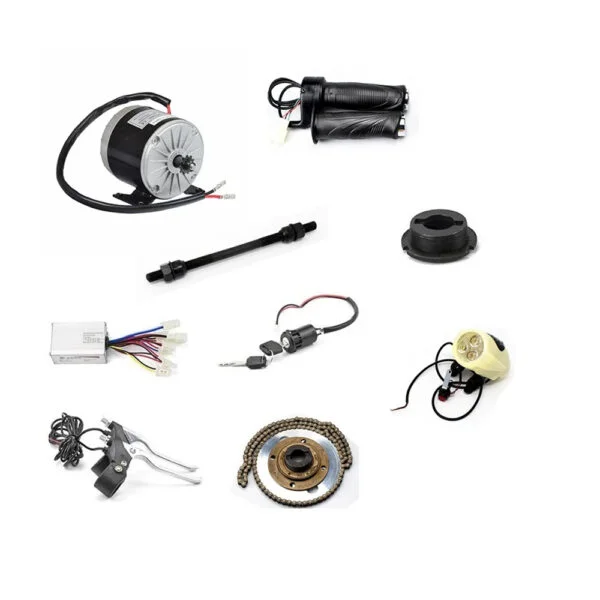

Package Included:

• 1 x MY1016 350W eBike Motor
• 1 x  24v 350w controller
• 1 x 80T tooth Dental Plate
• 1 x Freewheel
• 2 x Freewheel Adapter
• 1 x Pair of Throttles(L+R)
• 1 x Pair of Brake Lever(L+R)
• 1 x 25H High-Quality Chain
• 1 x Axel with Nuts
• 1 x  Ignition key switch with Two Keys
• 1 x Headlight with Inbuilt Horn
• 1 x Plastic Connector Housings set
• 1 x Charger Connector Holder
