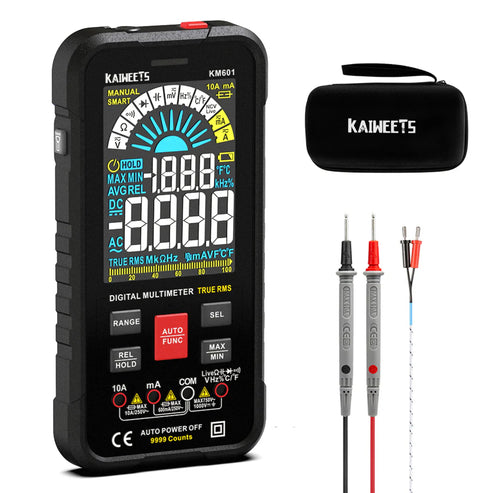

Kaiweets KM601 Multimeter KM601 Digital Multimeter RMS Smart Digital Multimeter Multi-Functional Digital Multimeter For Voltmeter, Ammeter, Ohmmeter

Description:

KM601 Multimeter defaults to Smart Mode. In Smart Mode, the meter can test automatically voltage, resistance, and continuity. It can identify fast the measurement content and select the range with the best resolution, you don’t need to do anything extra!

The KM601 Digital Voltmeter with a large LCD colour screen, and a flashlight for easy reading even in bright or dim places. The voltmeter can display an analogue bar, real-time temperature, low battery prompt, and damaged fuse prompt.

RMS Smart Digital Multimeter can accurately measure AC/DC voltage, AC/DC, and 10A current, and can also be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire. With this smart digital voltmeter, you can solve industrial, vehicle, and household electrical problems.

Specifications:

• Display: LCD
• Compatible Battery Size: AAA x 6
• Length: 164mm
• Width: 80mm
• Height: 20mm

Features:

• Kaiweets Smart Multimeter Can Accurately Measure AC/DC Voltage, AC/DC Current And 10A Current.
• Kaiweets Smart Multimeter Can Also Be Test Continuity, Capacitance, Frequency, Duty Cycle, Resistance, Diode, Temperature, NCV, And Live Wire.
• You Can Solve Industrial, Vehicles And Home Electrical Problems.
• Multiple Functions

• Portable And Best Size Design

Pin Description:

How To Installation Fuse Tutorial:

If the fuse blows due to improper use of the product, please refer to the installation tutorial example in the picture.

Safety Measurements:

• The multimeter is certified with CE and RoHS.
• The design and manufacture of the instrument strictly comply with IEC61010-1 CAT III 1000V, CAT IV 600V overvoltage safety standards, and pollution level two.
• The silicone cover can protect the multimeter from wear and electric shock.
• The dual ceramic fuses, which have anti-burn and overload protection functions, can effectively protect the multimeter.

Useful Link:

Kaiweets KM601 Multimeter Manual

Package Included:

1 x Kaiweets KM601 Multimeter KM601 Digital Multimeter RMS Smart Digital Multimeter Multi-Functional Digital Multimeter For Voltmeter, Ammeter, Ohmmeter
