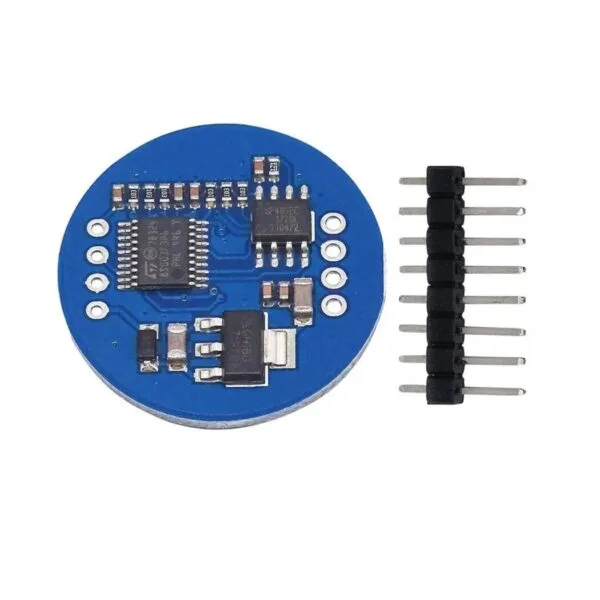

GY-485-44009 Light Intensity Sensor Module High-Precision RS485 Light Intensity Sensor / Light Intensity Light Sensor Module – RS1035

Description:

GY-485-44009 Light Intensity Sensor Module is a low-cost 485 illuminance sensor module. The working voltage is 3-5V, the power consumption is small, the volume is small, and the installation is convenient. The GY-485-44009 Light Intensity Sensor Module working principle is that the single-chip computer reads the illuminance sensor, and after calculation, the actual illuminance is obtained, and the data is transmitted through the 485 chip. The communication mode is standard 485 communication, the baud rate is 9600bps, 115200bps, the output mode is the inquiry output mode, the ID can be configured, and the ID can be saved when the power is off.

Specifications:

• Model: GY-485-44009
• Communication: RS485
• Diameter: 27 mm
• Form: Circle
• Colour: Blue
• Material: Metal
• Working Voltage: 3-5V

Features:

• High-cost performance
• 485 communication
• Wide range high precision
• With the corresponding PC software

Package Included:

1 x GY-485-44009 Light Intensity Sensor Module High-Precision RS485 Light Intensity Sensor / Light Intensity Light Sensor Module
