GT2 Timing Belt 6mm GT2 Open Loop Timing Belt 6mm Width for 3D Printer – 1 Meter – Accurate Synchronization for 3D Printers and CNC Machines

GT2 Timing Belt 6mm-

The GT2 Timing Belt 6mm is a type of synchronous drive belt commonly used in mechanical systems to transmit motion between two or more pulleys The GT2 timing belt belongs to the “GT” series of synchronous belts, which are designed for precision motion control applications.

Highest quality precision GT2 Width 6mm Black Open Timing Belt For 3D Printer. Made from NEOPRENE – Synthetic Rubber reinforced with fiberglass cords for superior strength. Neoprene – an oil-resistant substitute for natural rubber, was invented by DuPont scientists on April 17, 1930.

The balanced combination of the Polymer’s properties-

• Resists degradation from sun, ozone, and weather.
• Performs well in contact with oils and many chemicals.
• Remains useful over a wide temperature range.
• Displays outstanding physical toughness.
• Resists burning inherently better than exclusively hydrocarbon rubbers.
• Outstanding resistance to damage caused by flexing and twisting.

The Timing Belt also called the synchronous belt is popularly known for its non-slipping mechanical drive belt. It is composed of a flexible belt which contains a row of teeth embedded on the inner surface of the belt. The Timing Pulley and belt work when the toothed parts become compatible with each other.

The “6mm” designation refers to the width of the belt, meaning it is 6 millimetres wide. This width affects the overall load-bearing capacity and stability of the belt. The GT2 belt has a standard pitch of 2 millimetres, meaning that the centre of one tooth to the centre of the next tooth is 2 millimetres.

GT2 timing belts are typically made from a durable material like rubber with reinforcement fibres (e.g., fibreglass) for added strength. The teeth on a GT2 timing belt are trapezoidal in shape, designed to mesh accurately with GT2 pulleys.

GT2 belts are known for their high precision and accuracy in transmitting motion, making them suitable for applications where precise positioning is crucial. The design of the GT2 tooth profile helps reduce backlash, ensuring a more accurate and efficient power transmission.

GT2 belts are designed to withstand regular wear and tear, providing a long service life even in demanding applications. They are designed to operate within a specific temperature range, allowing them to function effectively in various environments.

Proper tensioning of the GT2 belt is essential for optimal performance. Tensioners or idler pulleys are used to achieve the correct tension. GT2 timing belts are used in a wide range of applications, including 3D printers, CNC machines, robotics, automation systems, and other machinery where precise motion control is required.

Specifications

• Material: Neoprene Rubber With Fiberglass Core
• Shape: Open Loop
• Total Length: 1M

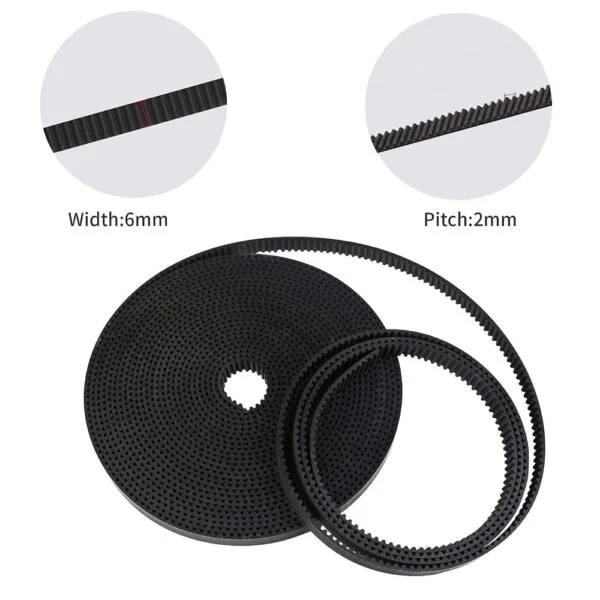

• Pitch: 2mm
• Width: 6mm
• Tooth Height: 0.76mm

Features

Accurate and Reliable Synchronization-

The GT2 Timing Belt (6mm) is designed to deliver accurate and reliable motion in your 3D printers, CNC machines, and other mechanical systems. With its precise tooth profile, it ensures smooth and synchronized movement.

High-Quality Construction for Longevity-

Crafted from durable materials, this timing belt is built to withstand the rigours of continuous operation. It resists wear and deformation, providing long-lasting performance for your projects.

Easy Installation and Low Maintenance-

Installing the GT2 Timing Belt is a breeze, thanks to its user-friendly design. Once in place, it requires minimal maintenance, allowing you to focus on your projects without worrying about constant adjustments.

Useful Link

GT2 Timing Belt Joining

Package Included

1 x GT2 Timing Belt 6mm GT2 Open Loop Timing Belt 6mm Width for 3D Printer – 1 Meter
