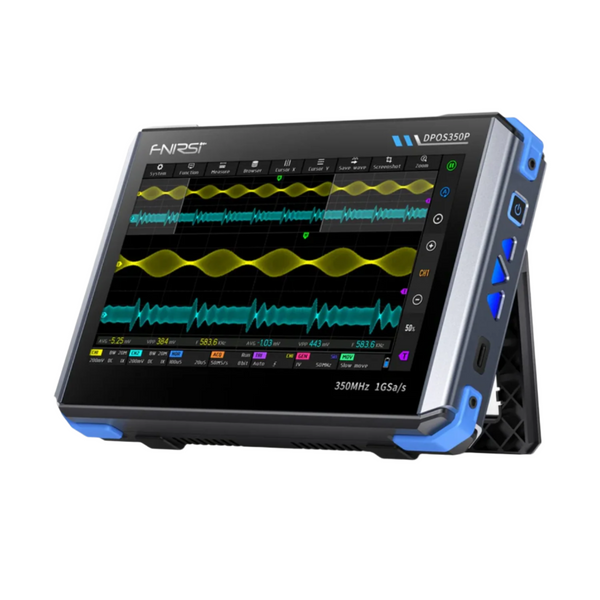

FNIRSI DPOS350P 350MHz 1GSPS 4-in-1 Tablet Oscilloscope High-Performance 1GSPS Sampling Waveform Generator For Comprehensive Signal Analysis

FNIRSI DPOS350P 350MHz 1GSPS 4-in-1 Tablet Oscilloscope High-Performance 1GSPS Sampling Waveform Generator For Comprehensive Signal Analysis

Original price was: ₹21000.00.Current price is: ₹20999.00.

  • The DPOS350P combines a 350MHz oscilloscope, 50MHz signal generator, 200K~350MHz spectrum analyzer, and a 50MHz frequency response analyzer to meet various signal testing needs.
  • With a 1GSPS real-time sampling rate, 350MHz analog bandwidth (single-channel mode), and an ultra-high 50,000 wfm/s waveform refresh rate, it can accurately capture and display low-probability anomaly signals.
  • Equipped with a 7-inch 1024×600 high-resolution IPS touchscreen, it provides clear waveform display and supports grayscale and color temperature mode switching, making it easy to operate in different testing environments.
  • The built-in 50MHz signal generator supports 14 standard waveforms and custom waveform functionality, while the spectrum analyzer covers a frequency range of 200K~350MHz, ideal for EMI, RF, and high-frequency signal testing.
  • The device has a high-voltage protection design up to 400V for safety, and with QC18W fast charging technology, it can be fully charged in 2 hours, ensuring long-term stable operation.
  • It supports up to 500 waveform data storage and 90 image storage, and has USB data export functionality for easy analysis and report generation
SKU: 85369090, RS8458 Category:

Description:

The DPOS350P is a high-performance, feature-rich all-in-one oscilloscope, suitable for a wide range of industrial and research applications. With its powerful integrated design, high sampling rate, and wide bandwidth, it can accurately analyze complex signals, provide a clear waveform display, and smart triggering.

The built-in high-resolution display, touch operation, intelligent triggering, and multiple measurement modes make it a precise and reliable tool for testing and analysis in laboratories, production lines, and maintenance sites.

Basic Parameter Specifications:

Brand FNIRSI
Power-on configuration5 preset items
Charging requirementsQC18W – 12V/1.5A (Type-C)
LanguagesChinese / English / Russian / Portuguese
Battery specifications3.7V, 8000mAh lithium battery
Standby timeabout 3 hours
Screen resolution1024 x 600 pixels
Charging timeStartup ≈ 5 Hours
Screen technologyIPS full viewing angle
Total power consumption10W
Interaction modecapacitive touch screen
Heat dissipation
air cooling
Expansion interfacecapacitive touch screen
Automatic shutdown15 minutes ~ 1 hour / off
Firmware upgradesupport iso image upgrade
Storage Temperature Range-20~60℃

Oscilloscope Parameters Specifications:

Analog Channels2
Analog bandwidth350MHz
Rise time1nS
Max sampling rate1GSPS
Memory depth60Kpts
Input impedance1MΩ / 14PF
Time base range5nS ~ 50S
Roll time base50mS ~ 50S
Vertical sensitivity2mV ~ 20V(1X)
Vertical range16mV ~ 160V(1X)
DC accuracy±2%
Time accuracy±0.01%
Input couplingDC / AC
Probe attenuation1X / 10X / 100X
Hardware bandwidth limit150M / 20M
High resolution mode
8bit ~ 16bit
Parameter measurements12 types
Cursor measurementtime, period, frequency, level, voltage
Trigger detectiondigital trigger
Trigger channelCH1 / CH2
Trigger modeAuto / Single / Normal
Trigger edgerising edge / falling edge
Trigger suppressionL1 ~ L3
Trigger levelmanual/automatic 10% ~ 90%
Screenshot storage90 pictures
Waveform storage500 groups
Background griddisplay/hide
Waveform movementcoarse adjustment / fine adjustment
Overvoltage protectionWithstand voltage 400V
Waveform brightnessadjustable
Simple FFT displaysupport
Digital fluorescencesupport
Color temperature displaysupport
X-Y modesupport
ZOOM time basesupport
One-key automatic adjustmentsupport
One-key return to zerosupport
Data browsersupport

Signal Generator Parameters:

Waveform types14 standard functions + captured waveform
Frequency0 ~ 50MHz(sine wave only, other waveforms up to 10M/5M/3M)
Amplitude0 ~ 5VPP
Offset-2.5V ~ +2.5V
Duty cycle0.1% ~ 99.9%
Frequency resolution1Hz
Amplitude resolution1mV
Offset resolution1mV
Duty cycle resolution0.1%
Customizable captured waveform500 groups

Frequency Response Analyzer Section:

Excitation signal frequency100Hz ~ 50MHz
Excitation signal amplitude0 ~ 5VPP
Excitation signal offset-2.5V ~ +2.5V
Excitation frequency count20 ~ 500
Cursor measurementfrequency/gain/phase
Operating modesingle/cyclic
System calibrationsupport

Spectrum Analyzer Part:

Conversion methodFFT
FFT length4K ~ 32K
Frequency range200KHz ~ 350MHz
Level range60dBmV ~ +260dBmV
Cursor measurementfrequency/amplitude
Marking parametermaximum energy harmonic
Waterfall chartsupport
3D waterfall chartsupport
Automatic adjustmentsupport
System calibrationsupport
4-in-1 tablet oscilloscope with signal generator
350MHz oscilloscope with spectrum analyzer
FNIRSI DPOS350P 4-in-1 350MHz 1GSPS
Tablet oscilloscope for signal analysis

Features:

  • The DPOS350P combines a 350MHz oscilloscope, 50MHz signal generator, 200K~350MHz spectrum analyzer, and a 50MHz frequency response analyzer to meet various signal testing needs.
  • With a 1GSPS real-time sampling rate, 350MHz analog bandwidth (single-channel mode), and an ultra-high 50,000 wfm/s waveform refresh rate, it can accurately capture and display low-probability anomaly signals.
  • Equipped with a 7-inch 1024×600 high-resolution IPS touchscreen, it provides clear waveform display and supports grayscale and color temperature mode switching, making it easy to operate in different testing environments.
  • The built-in 50MHz signal generator supports 14 standard waveforms and custom waveform functionality, while the spectrum analyzer covers a frequency range of 200K~350MHz, ideal for EMI, RF, and high-frequency signal testing.
  • The device has a high-voltage protection design up to 400V for safety, and with QC18W fast charging technology, it can be fully charged in 2 hours, ensuring long-term stable operation.
  • It supports up to 500 waveform data storage and 90 image storage, and has USB data export functionality for easy analysis and report generation

Package Included:

  • 1 x DPOS350P Oscilloscope
  • 1 x Packaging Box
  • 1 x User Manual
  • 2 x 350MHz Probes
  • 1 x USB data Cable
  • 1 x Alligator Clip
  • 1 x QC18W Fast Charger
