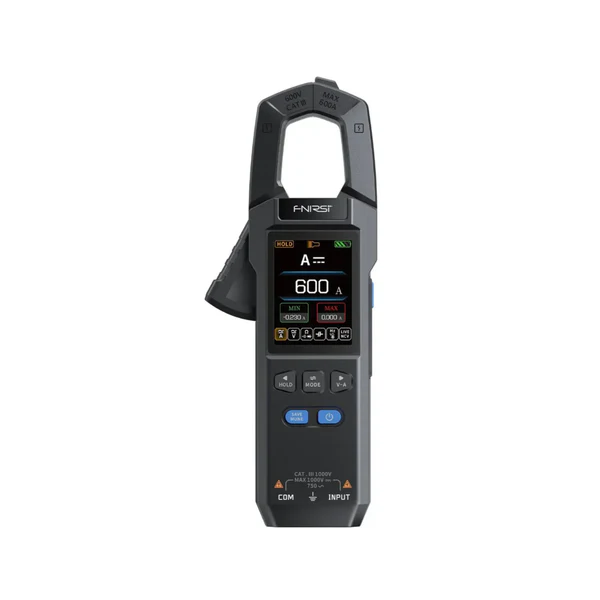

FNIRSI DMC-100 Digital Clamp Meter Multimeter High-Resolution DC/AC Current Clamp Meter Multimeter with Enhanced Accuracy and Stability

Original price was: ₹3549.00.Current price is: ₹3149.00.

  • High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
  • Wide Measurement Range: Supports up to 750V voltage and 600A current.
  • High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
  • Intuitive Interface: New UI with data curve display for easy reading at a glance.
  • Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.
  • NCV Function: Non-contact voltage measurement and zero/fire line identification.
  • Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
  • Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
  • Type-C Interface: Convenient charging and data transmission via Type-C port.
  • Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
  • Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
  • Temperature Unit Switching: Easily switch between temperature units (℃/℉).
  • Adjustable Brightness: Screen brightness is adjustable for various environments.
  • Firmware Upgradeable: Supports firmware updates to enhance functionality.
SKU: 85369090, RS8363 Category:

Description:

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, vehicle overhaul, or home electrical diagnostics, and can be easy to handle.

Specifications:

Model
DMC-100
Screen
2.0” TFT color screen
Screen Resolution
240*320 pixels
Battery
3.7V, 1500mAh Lithium Battery
Charging Specification
USB Type-C, 5V/1A
Maximum Jaws Size
25mm
Temperature Unit
℃/℉
Product Size
193x74x32mm
Product Weight
194g
DC Voltage
9.999V / 99.99V / 999.9V
AC Voltage
9.999V / 99.99V / 750.0V
DC Current & AC Current
99.99A / 600.0A
Resistance
99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
Capacitance
9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Frequency
9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
Temperature
-55~1300℃ / -67~2372℉
Diode Measurement
Support
On-off Test
Support
Non-Contact Voltage Check (NCV)
Support
Zero Fire Wire Check
Support
Measuring Mode
1. General Measurement
2. Waveform Display
3. Power Measurement
Measurement Gear
Manual Adjustment
TorchSupport
Data Zeroing
Support
Maximum/Minimum Value
Support
Waveform Display
Support
Power Calculation
Support
Data Hold
Data Hold
Data Storage and Viewing
Up to 30 groups of data
Language
Chinese / English
Brightness Adjustment
10-speed adjustment
Auto Power Off
OFF / 5min / 15min / 30min
Firmware Upgrade
Support
AC Current
4A / 40A / 600A
Resistance
400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ

FNIRSI DMC-100 DC/AC Current & Voltage Clamp Meter Multimeter
DMC-100: DC/AC Clamp Meter & Digital Multimeter
FNIRSI DMC-100 Digital Clamp Meter: DC/AC Current & Voltage
FNIRSI DMC-100 DC/AC Clamp Meter

Features:

  • High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
  • Wide Measurement Range: Supports up to 750V voltage and 600A current.
  • High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
  • Intuitive Interface: New UI with data curve display for easy reading at a glance.
  • Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.
  • NCV Function: Non-contact voltage measurement and zero/fire line identification.
  • Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
  • Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
  • Type-C Interface: Convenient charging and data transmission via Type-C port.
  • Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
  • Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
  • Temperature Unit Switching: Easily switch between temperature units (℃/℉).
  • Adjustable Brightness: Screen brightness is adjustable for various environments.
  • Firmware Upgradeable: Supports firmware updates to enhance functionality.

Package Included:

  • 1 x FNIRSI DMC-100 DC AC Current Voltage Clamp Meter Digital Multimeter
  • 1 x User Manual
  • 1 x Packaging Box
  • 1 x Type-C Charging cable
  • 1 x Multimeter pen
  • 1 x Temperature probe
