FNIRSI 2C23T 3-in-1 Oscilloscope Handheld Analyzer Digital Multimeter and Function Generator With Bluetooth Connectivity For Data Analysis

Brand	FNIRSI
Model	2C23T
Display Screen	2.8 inch HD color screen
Resolution ratio	320*240
Charging Specifications	TYPE-C (5V/1A)
Battery	3000mAh lithium battery
Support Functions	Oscilloscope, Signal generator, Multimeter
Standby Time	6h (laboratory theoretical maximum)
Language	English

SKU: 85369090, RS8428 Category: Uncategorized

Description:

The FNIRSI-2C23T is a versatile 3-in-1 dual-channel digital oscilloscope designed for maintenance and development work. It combines an oscilloscope, a multimeter, and a signal generator in one device. The oscilloscope features FPGA+MCU+ADC architecture, 50 MS/s sampling rate, 10 MHz bandwidth, and high-voltage protection, supporting peak voltage measurements up to ±400V. It allows for saving and analyzing waveform screenshots.

The multimeter offers 4-digit, 10,000-point true RMS measurements for AC/DC voltage, current, resistance, capacitance, diode, and continuity. The built-in DDS signal generator outputs 7 signal types, with adjustable frequency (up to 2 MHz), amplitude, and duty cycle.

The device has a 2.8″ high-definition LCD (320×240 resolution) and a 3000mAh rechargeable battery with up to 6 hours of standby time, offering compact size and portability for a wide range of users including professionals, students, and hobbyists.

Specifications:

Brand	FNIRSI
Model	2C23T
Display Screen	2.8 inch HD color screen
Resolution ratio	320*240
Charging Specifications	TYPE-C (5V/1A)
Battery	3000mAh lithium battery
Support Functions	Oscilloscope, Signal generator, Multimeter
Standby Time	6h (laboratory theoretical maximum)
Language	English

Oscilloscope Specifications:

Channel	Dual channel
Sample Rate	50M
Analog Bandwidth	10M(dual channel independent 10M)
Storage Depth	32kb
Impedance	1MΩ
Time Base Range	50ns-10s
Vertical Sensitivity	20mV/div – 10V/div (X1)
Maximum Measured Voltage	±400V
Trigger Mode	AUTO/Normal/Single
Trigger Type	Rising edge, Falling edge
Display Mode	YT/Scroll/
Coupling Method	AC/DC
Save Waveform Screenshot	YES
Export Waveform Images	YES

Signal Generator Specifications:

Channel	Single channel
Frequency	1Hz-2MHz
Amplitude	0.1-3.3V
Output Waveform	Sine wave, square wave, triangular wave, full wave, half wave, noise wave, DC Output
Duty Cycle	0-100%

Multimeter Specifications:

DC Voltage	Range: 9.999V / 99.99V / 999.9V Accuracy: ±(0.5%+3)
AC Voltage	Range: 9.999V / 99.99V / 750.0V Accuracy: ±(1%+3)
DC Current	Range: 9999μA / 99.99mA / 999.9mA / 9.999A Accuracy: ±(1.2%+3)
AC Current	Range: 9999μA / 99.99mA / 999.9mA / 9.999A Accuracy: ±(1.5%+3)
Resistance	① Range: 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω Accuracy: ±(0.5%+3) ② Range: 99.99MΩ Accuracy: ±(1.5%+3)
Capacitance	① Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF Accuracy: ±(2.0%+5) ② Range: 9.99mF / 99.99mF Accuracy: ±(5.0%+20)
Temperature	Range: (-55~1300°C) / (-67~2372°F) Accuracy: ±(2.5%+5)
Diode	YES
Continuity Test	YES
Live Line Detection	YES

Features:

Strict Quality Selection and Refine on

One Click Measurement For Easy Adjustment.

Waveform Saving and Viewing

Powerful Waveform Analysis.

Widely Applicable for Precise Measurement.\

High Precision and More Reliable.

Signal Generator function introduction.

Package Included:

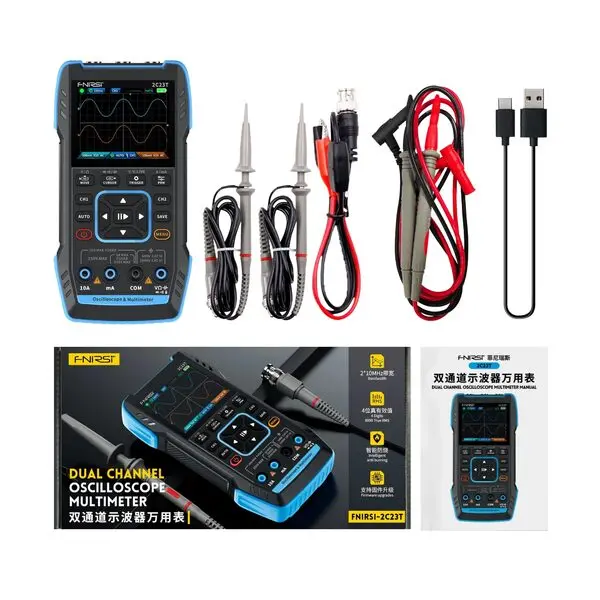

FNIRSI 2C23T 3-in-1 Oscilloscope-Kit
