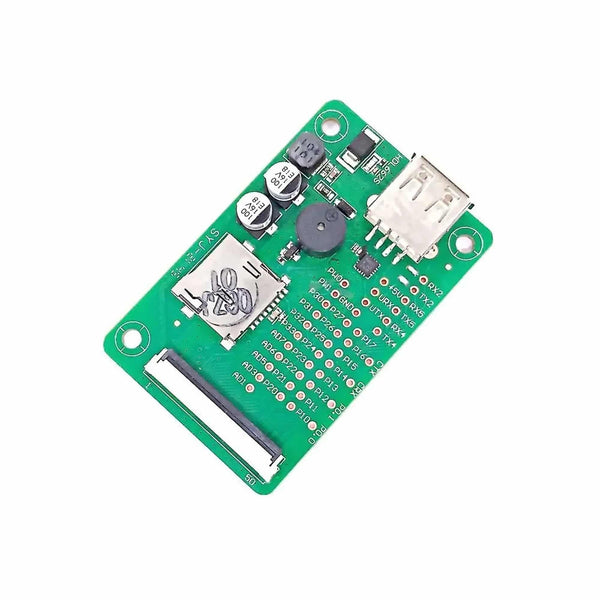

DWIN HDL662S Debugging Board for CoF LCD

Description:

The HDL662S Debugging Board is designed to debug the F series COF screens LCM LCD Module. It can lead to 22IOs, 3 UARTs, 1 CAN, 5 ADs, and 2 PWMs from T5L and supports USB power supply and communication. HDL662S Debugging Board USB defaults to serial port 2 communication and supports serial port 4 and serial port5 communication. You can download and update all configuration files by SD card. The HDL662S Board provides the interface between the PC’s USB port and the HDL662S in-system debug/programming circuitry. The power supply is provided to the adaptor from the USB port of the PC.

Features:

• SD Card Read Slot available
• 2.54mm pitch on board SPI
• HDL662S Debugging Board has On-Board Buzzer
• HDL662S Debugging Board has Onboard Voltage Regulator
• 22 IOs, 3 UARTs, 1 CAN, 5 ADs, 2 PWM
• HDL662S Debugging Adapter Board has Onboard debugging and Project Uploading
• USB Male Port for System and Board Connectivity

Package Included:

1 x  DWIN HDL662S Debugging Adapter Board for CoF LCD
