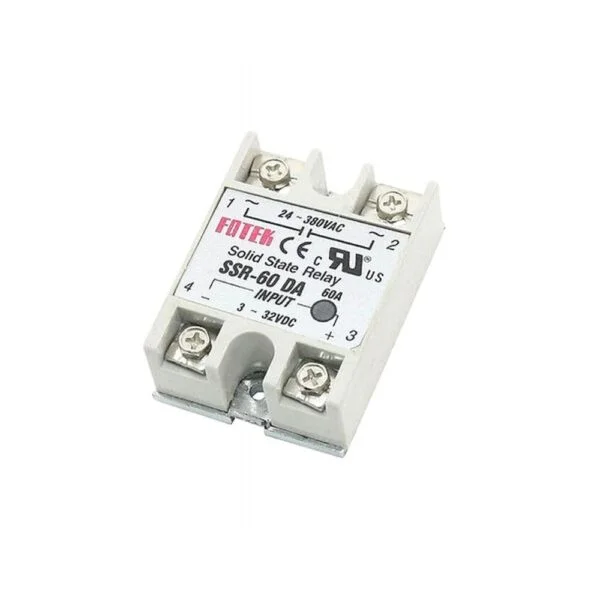

DC To AC SSR-60DA Solid State Relay Module 3-32 VDC /24-380VAC 60A

This is DC To AC SSR-60DA Solid State Relay Module 3-32VDC/24-380VAC 60A. A solid state relay (SSR) allows you to control high-current AC loads from lower voltage DC control circuitry. Solid state relays have several advantages over mechanical relays.

One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out.

This particular SSR can switch current loads of up to 60A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.

60DA Solid State Relay SSR Feature :

• Long service life and high reliability
• Reduced electromagnetic interference
• Highly reliable, compact size designed to offer users maximum simplicity.

60DA Solid State Relay SSR Specification :

• Model  : SSR-60DA
• Color : Light Gray
• Trigger Voltage (VDC) : 3-32
• Switching Voltage (VAC) : 24-380@60A
• Rated Load Current (A) : 60

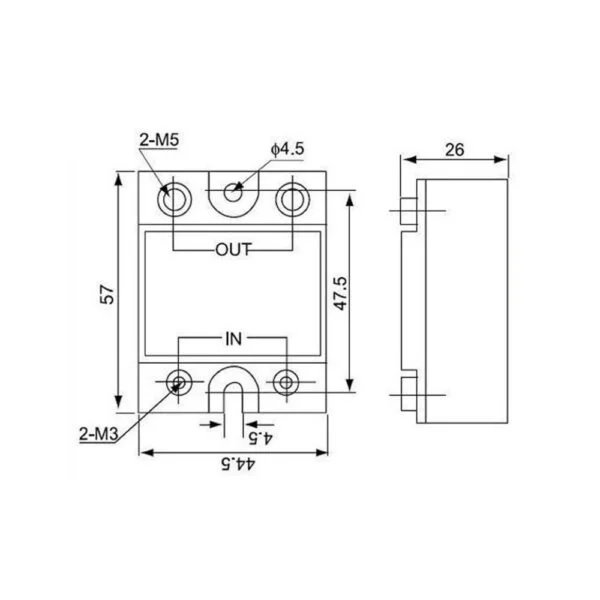

• Length (mm) : 60
• Width (mm) : 45
• Height (mm) : 24

Package Included :

1 x DC To AC SSR-60DA Solid State Relay Module 3-32 VDC /24-380VAC 60A
