DC Speed Controller 10-50V 40A PWM Motor Speed Regulator Module Board with Adjustment CW/CCW Potentiometer Switch – RS1078

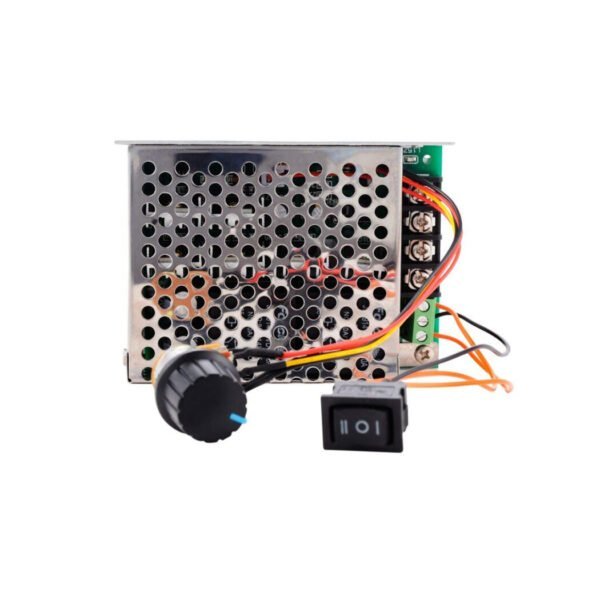

This is DC Speed Controller 10-50V 40A PWM Motor Speed Regulator Module Board. With simple potentiometer knob adjusts the motor speed from 0% ~ to 100% smoothly. The Forward-Brake-Reverse switch is convenient to change the direction of the motor without adjusting the order of the motor lines. It has an aluminium shell that prevents it from being easily damaged, holes on its side and top and six heat sinks are helpful for heat dissipation.

Specification:

• Working Voltage: DC 10 V~50 V
• Maximum Current: 60A
• Power Range: 0 ~ 2000W
• Speed Range: 0%~100%
• Sustained Current: 40 A
• Forward Reverse: Support
• Output Voltage: Load linear
• Speed Principle: Current regulation
• Speed Control Type: Adjust the current
• Speed Adjustment Way: Potentiometer (with switch)

Features:

• Easy to install and operate: Simple potentiometer knob adjusts the motor speed from 0% ~ to 100% smoothly
• Conveniently change the motor direction: The Forward-Brake-Reverse switch is convenient to change the direction of the motor without adjusting the order of the motor lines
• Excellent heat dissipation performance: Aluminum shell prevents it from being easily damaged, holes on its side and top and six heatsinks are helpful for heat dissipation
• LED indicator: The LED indicator will light on when the module is powered on

Note:

• Cannot connect to AC power directly, it is a DC motor controller.
• Cannot reverse the positive and negative polarity of the POWER.
• Cannot reverse the positive and negative polarity of the MOTOR.
• Cannot control a brushless motor, this controller only supports a brush motor.
• Double check all connections before applying power and always turn off the power supply before making any wiring changes.
• Speed Control Type: Current modulation, NOT Pulse Width Modulation (PWM)

Package Included:

1 x DC Speed Controller 10-50V 40A PWM Motor Speed Regulator Module Board with Adjustment CW/CCW Potentiometer Switch
