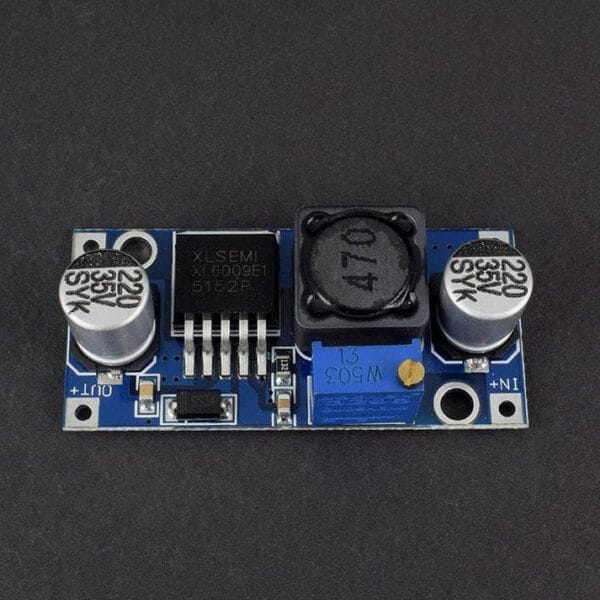

DC-DC Booster Adjustable Step up down Converter XL6009 Power Supply Module

• Input Voltage: 3 to 32V
• Input Current: 4A
• Output Voltage: 5 to 35V
• Output Ripple: mV
• Efficiency: 94%

Description:

This XL6009 DC – DC Step-up converter module is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency. The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance. It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%. High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller.

Specification:

Features:

• Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
• Wide Output voltage 5V ~ 35V;
• Built-4A efficient MOSFET switches enable efficiency up to 94%; (LM2577 current is 3A)
• High switching frequency 400KHz, can use a small-capacity filter capacitors that can achieve very good results, the ripple smaller and smaller. (LM2577 frequency only 50KHz)

Test Results:

• Input 3V Output 12V 0.4A 4.8W
• Input 5V Output 12V 0.8A 9.6W
• Input 7.4V Output 12V 1.5A 18W
• Input 12V Output 15V 2A 30W
• Input 12V Output 16V 2A 32W
• Input 12V Output 18V 1.6A 28.8W
• Input 12V Output 19V 1.5A 28.5W
• Input 12V Output 24V 1 A 24W

Pin Description:

• IN+ Input positive
• IN- Input negative
• OUT+ Output positive
• OUT- Output negative

Package Included :

1 x DC-DC Booster Adjustable Step up down Converter XL6009 Power Supply Module
