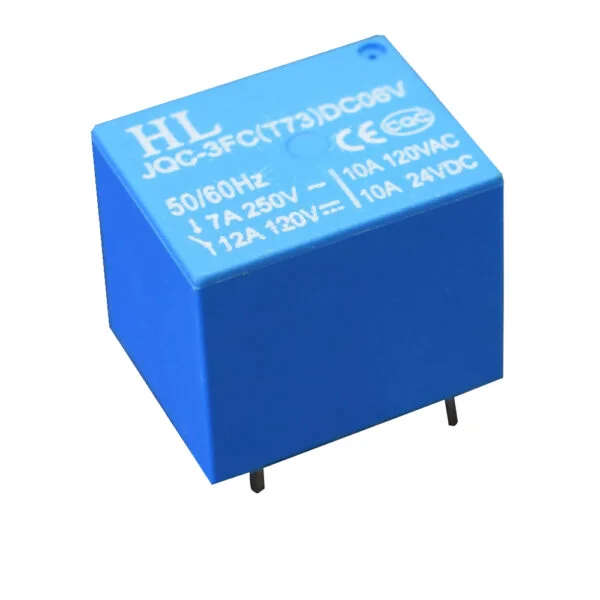

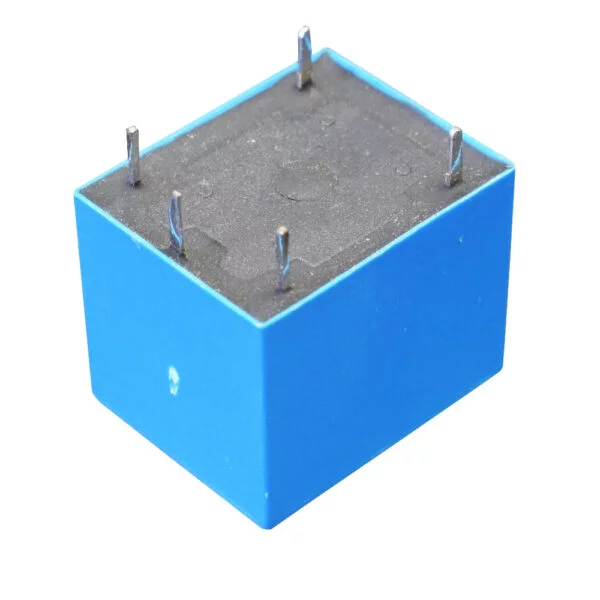

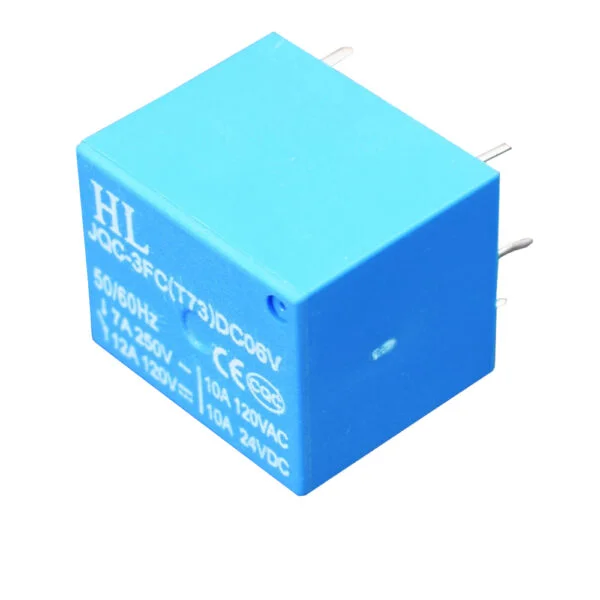

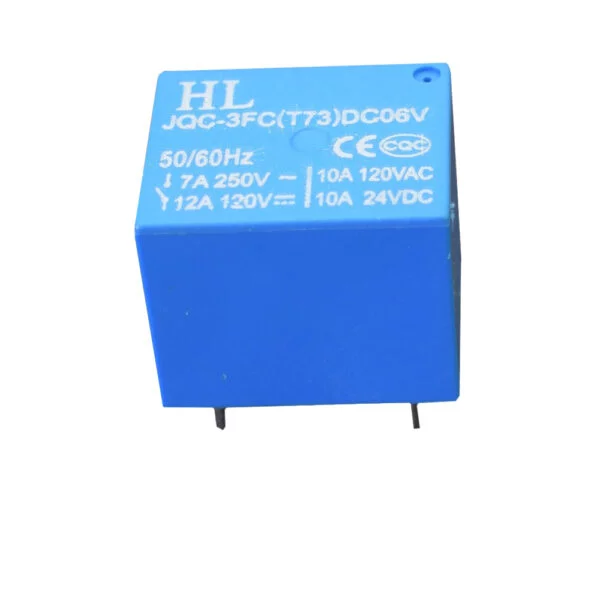

DC 6V Relay Switch 5 Pin 10A DC Coil SPDT Auto Universal Relay
Original price was: ₹25.00.₹17.00Current price is: ₹17.00.
6V Relay Specification:
- Rated load: 10A 250VAC/28VDC,10A 125VAC/28VDC,10A 125VAC/28VDC
- Contact resistance: <=100m (ohm)
- Electrical life: 100,000
- Mechanical life: 10,000,000
- Coil rated voltage: 3-48VDC
- Coil power: 0.36W, 0.45W
- Coil pick-up voltage: <=75%
DC 6V Relay Switch 5 Pin 10A DC Coil SPDT Auto Universal Relay Single channel simple magnetic relay for PCB mount. This relay is in line with international safety standard, control areas and load area have the isolation groove; blue KF301 terminal line more convenient. USES the loose quality goods relay, dc or ac signal control, can control 220 v ac load, have power and relay operation instructions, and bright, disconnect the dawn, signal input signal, the public end and will often start conduction, can be used as a microcontroller development board module, can be used as a home appliance control and one often opened a normally closed contact. Used widely in the remote control, communication, automatic control system, electronic equipments, etc.
6V Relay Specification:
- Rated load: 10A 250VAC/28VDC,10A 125VAC/28VDC,10A 125VAC/28VDC
- Contact resistance: <=100m (ohm)
- Electrical life: 100,000
- Mechanical life: 10,000,000
- Coil rated voltage: 3-48VDC
- Coil power: 0.36W, 0.45W
- Coil pick-up voltage: <=75%
- Coil drop-out voltage: >=10%
- Ambient temperature: -25 degrees Celsius to +70 degrees Celsius
- Coil and contacts:1500VAC/min
- Contact and contacts: 1000VAC/min
- Insulation resistance: >=100M ohm
- Mounting form: PCB
6V Relay Features:
- 5 pins, SPDT type, plastic housing.
- Can adjust automatically, protect and transform the electric circuit.
Package Included:
1 x SRD-6VDC-SL-C DC 6V SPDT 1NO 1NC 5 Pins Coil Power Relay
