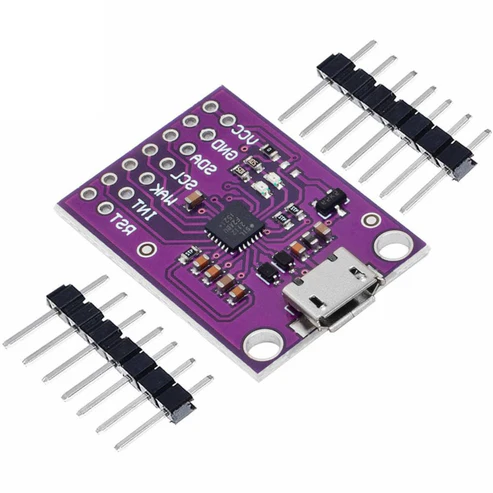

CP2112 Debug Board Module CP2112 USB to I2C Debug Board USB-Powered I2C Communication Module For Microcontroller Development

Description:

USB to I2C Communication Module CP2112 These highly-integrated USB to SMBus bridge controllers provide a simple solution for adding USB using minimal components and PCB space.

The CP2112 includes a full-speed USB 2.0 feature controller, a USB transceiver, an oscillator, and a total of 8 GPIOs. All customization and configuration options can be selected using a simple GUI-based configurator. By eliminating the need for complex firmware and driver development, the CP2112 devices enable fast USB connectivity with minimal development effort.

Specification:

• USB Bus Power Supply: 4.0 to 5.25V
• Self-powered: 3.0 to 3.6V
• I/O Voltage: 1.8V to VDD
• Operating Temperature: 40 C ~ 85 C

Features:

• On-chip power-on reset circuit, on-chip voltage regulator: 3.45 V output
• Compliant with USB specification 2.0 standard; full speed (12Mbps)
• USB suspend status via SUSPEND and /SUSPEND pins
• Integrated 194-byte one-time programmable ROM for storing customizable product information
• 512-byte SMBus data buffer, configurable clock speed device address 7-bit value is the slave address of CP2112
• Windows, Mac, and Linux HID to SMBus libraries API for rapid application development, open-access interface specifications.
• 8 GPIOs can be configured as input/output and open-drain/push-pull, configurable clock output for external devices 48MHz to 94kHz, switching LEDs during reading/writing SMBus
• Module size: 29.5mm*21.3mm, with two M3 mounting holes, one Micro USB female port
• Application areas: Portable controllers, USB dongle, data logging

Package Included:

1 x CP2112 Debug Board Module CP2112 USB to I2C Debug Board USB-Powered I2C Communication Module For Microcontroller Development
